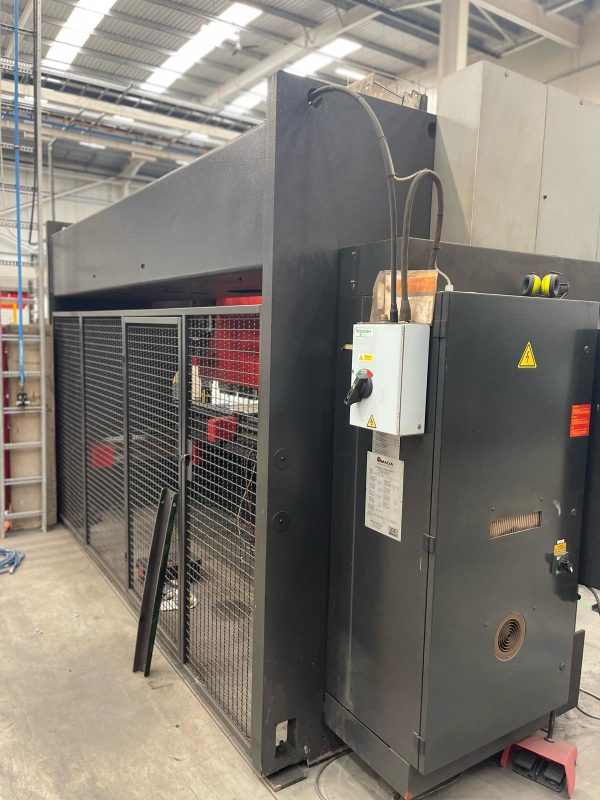

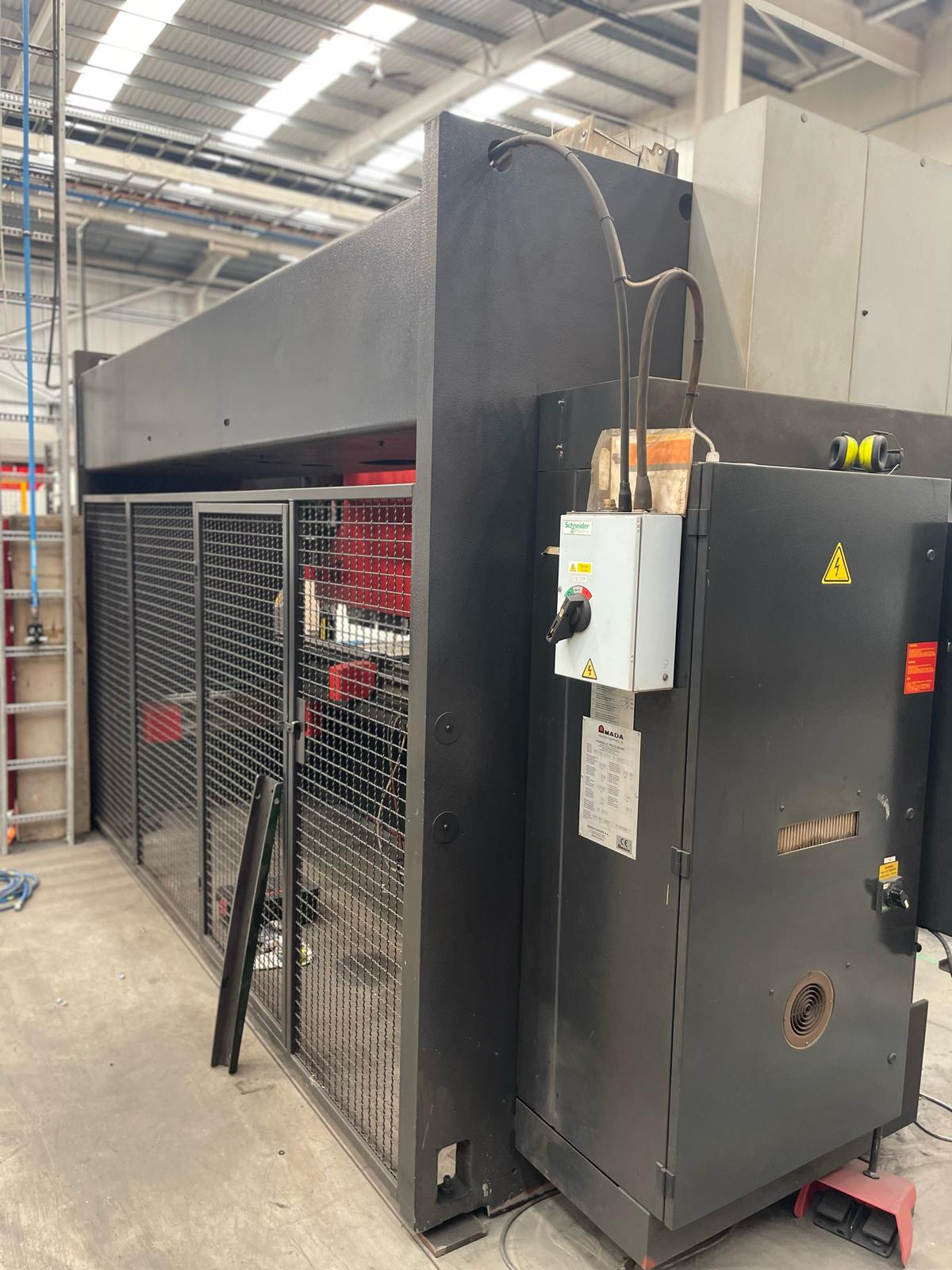

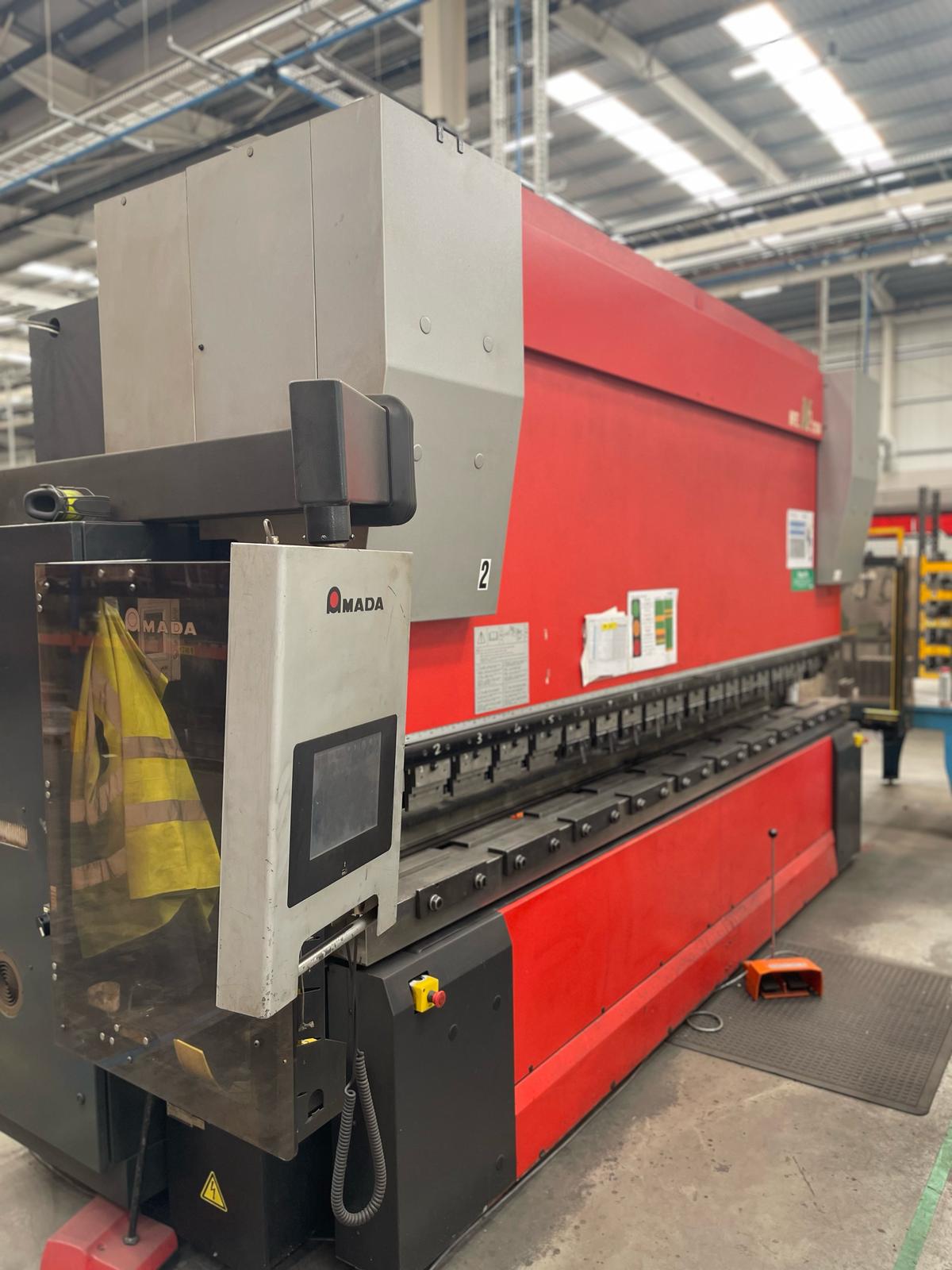

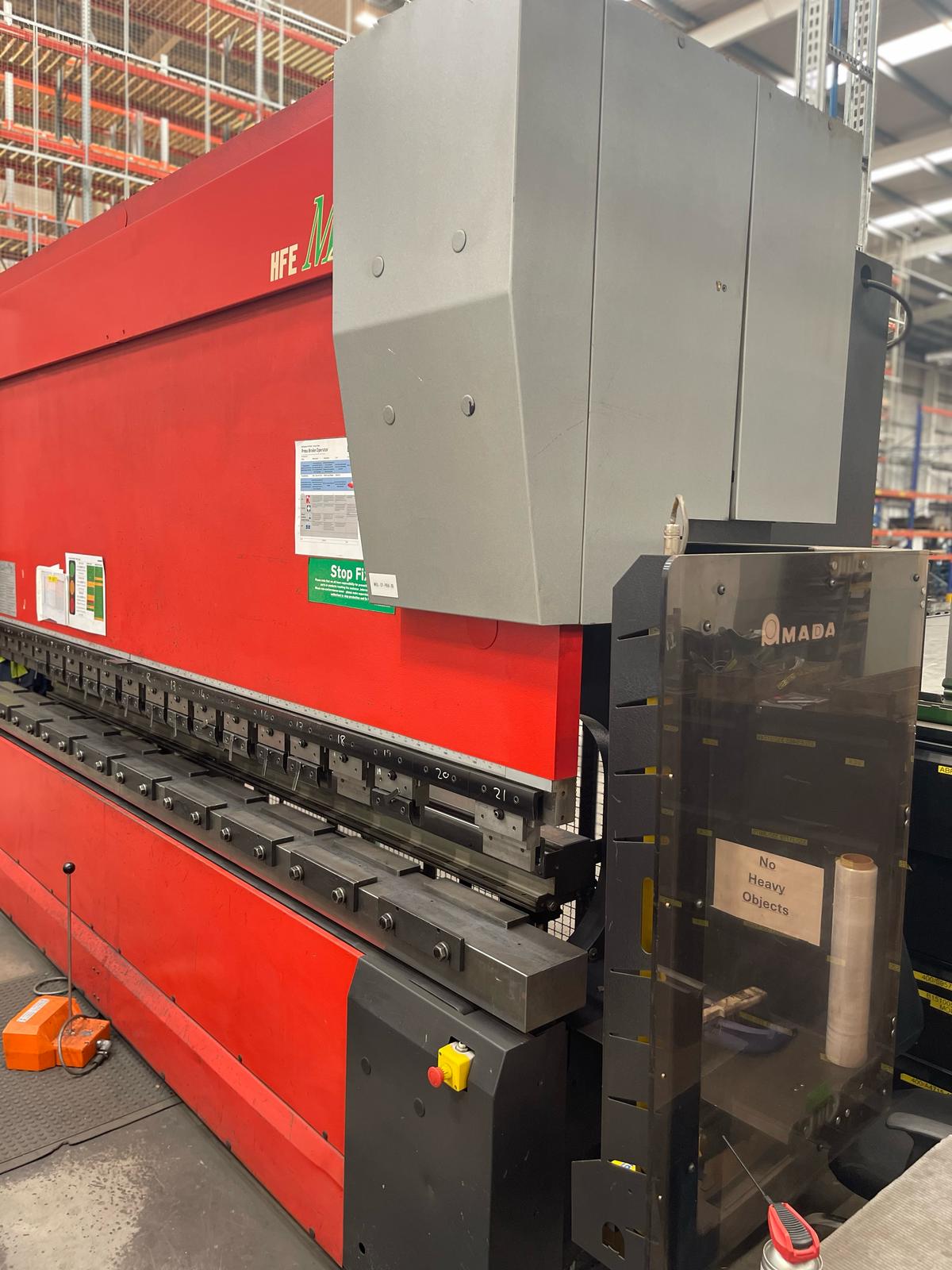

Model Amada HFE M2 220t 4m, 8 axis Press Brake
- Machine type:
- Press brake
- Manufacturer:
- AMADA PROMECAM
- Model:
- HFE MK II 220 x 4000
- Year of construction:
- 2012
- Condition:
- excellent (used)
Model Amada HFE M2 220t 4m, 8 axis Press Brake
Year 2012
Tonnage 220 tonnes
Max. Bend Length 4280 mm
Stroke Length 200 mm
Approach Speed 1 – 100 mm/sec
Bending Speed 1 – 10 mm/sec
Return Speed 1 – 100 mm/sec
Oil Capacity 195L
Motor Power
Weight 17450 KgDimensions
Machine Length 5070 mm
Machine Depth 2075 mm
Machine Height 3085 mm
Distance Between Side Frames 3760mm
Beam width 180 mm
Table height 960 mm
Open Height 470 mm
Throat Depth 420 mm
Year 2012
Tonnage 220 tonnes
Max. Bend Length 4280 mm
Stroke Length 200 mm
Approach Speed 1 – 100 mm/sec
Bending Speed 1 – 10 mm/sec
Return Speed 1 – 100 mm/sec
Oil Capacity 195L
Motor Power
Weight 17450 KgDimensions
Machine Length 5070 mm
Machine Depth 2075 mm
Machine Height 3085 mm
Distance Between Side Frames 3760mm
Beam width 180 mm
Table height 960 mm
Open Height 470 mm
Throat Depth 420 mm
STOCK NO:
YEAR:
2012
