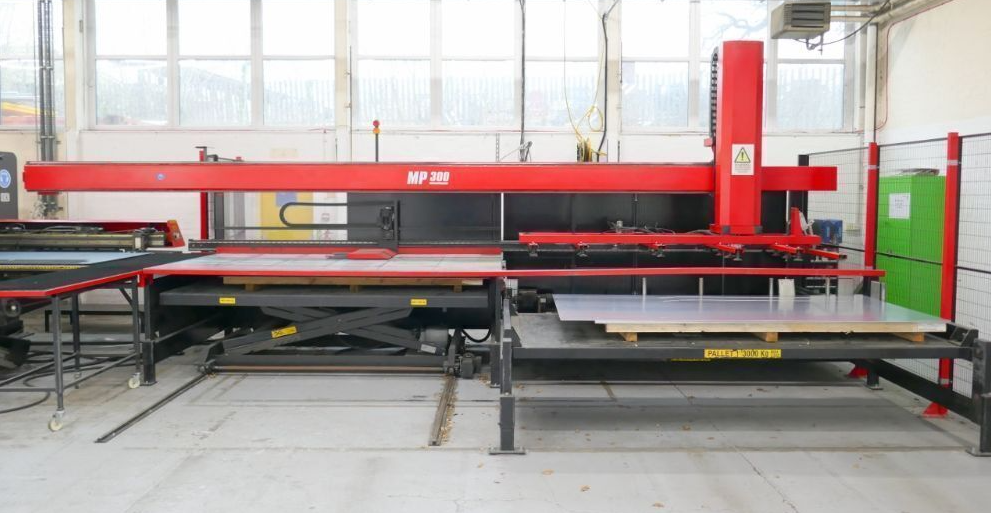

LKI PM 300 LOAD UN LOAD STOCK NO 01981

LKI PM 300 LOAD UN LOAD STOCK NO 01981

STOCK NO:

01981

YEAR:

2006

Max Sheet Size                                            …                    3000mm x 1500mm

Min Sheet Size                                             …                    1000mm x 300mm

Sheet Thickness Range                             …                    0.5mm – 6.0mm

Maximum Lifting Capacity                          …                    170Kg

Cycle Time                                                    …                     32sec

No. Of Raw Material Pallets                       …                    2 off

Max Load Per Raw Material Pallet           …                    3000Kg

Maximum Stack Height                               …                    300mm

Separation Magnets/Pallet                         …                    3 off

Pallet Exchange Time                                 …                    25sec

Sheet Separation                                         …                    Sheet Peel and Airblow

Double Sheet Detector                                …                    Yes

Stacking Table Load Capacity                   …                    3000Kg

Stacking Table Max Stack Height             …                    400mm

Power                                                             …                    10KVA

Air Pressure                                                  …                    6 Bar

Air Flow Rate                                                …                    650l/min

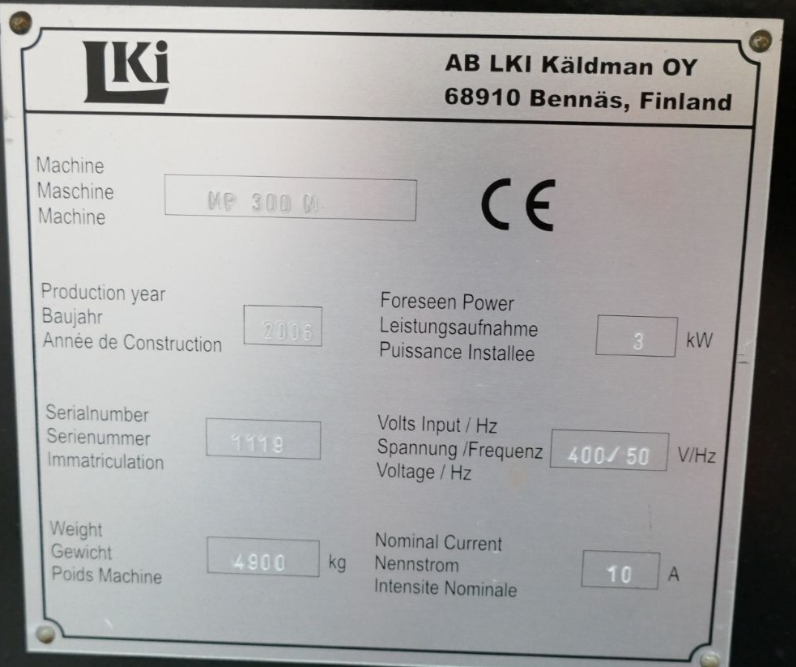

Serial number                                                                      1119
