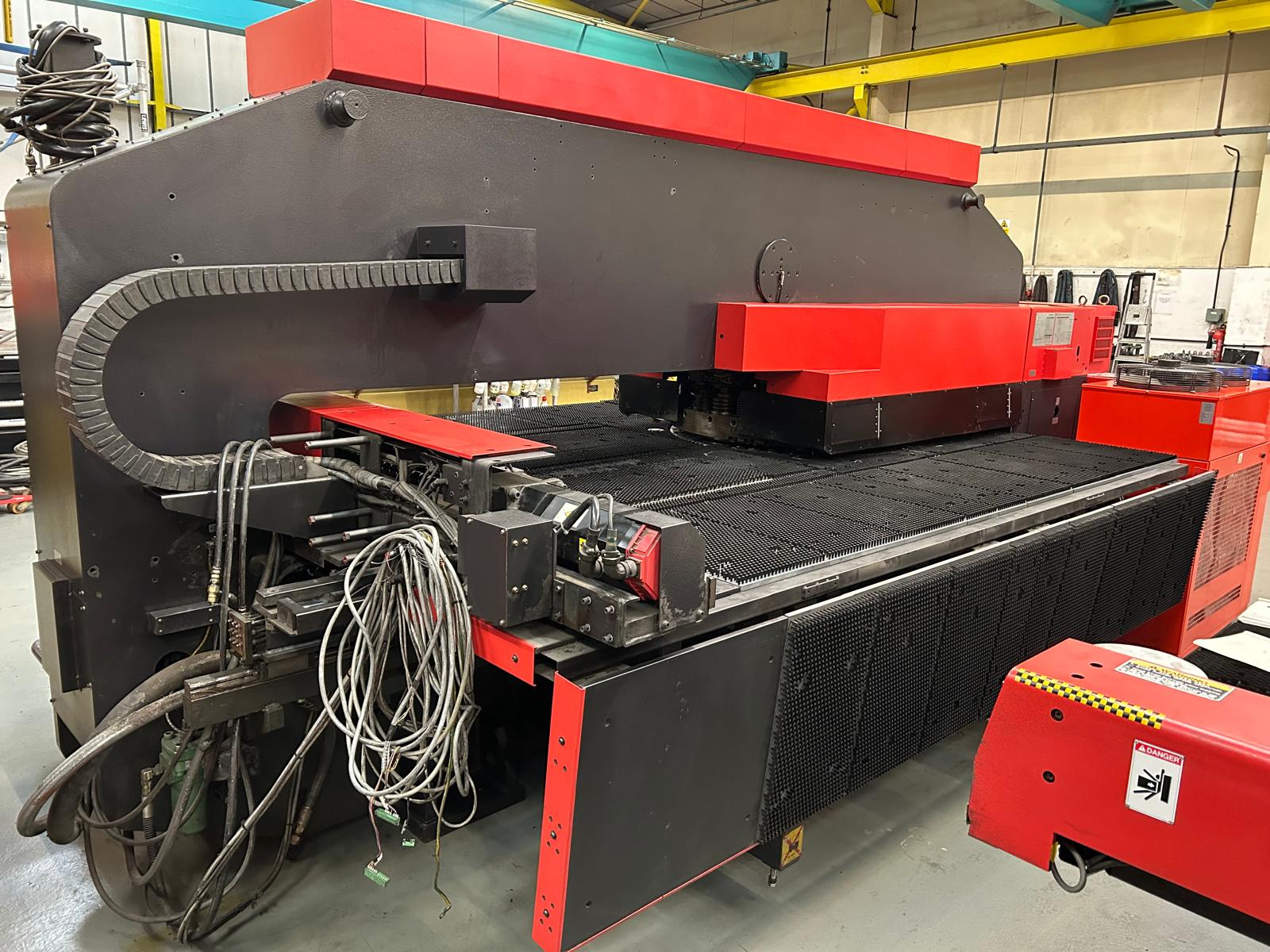

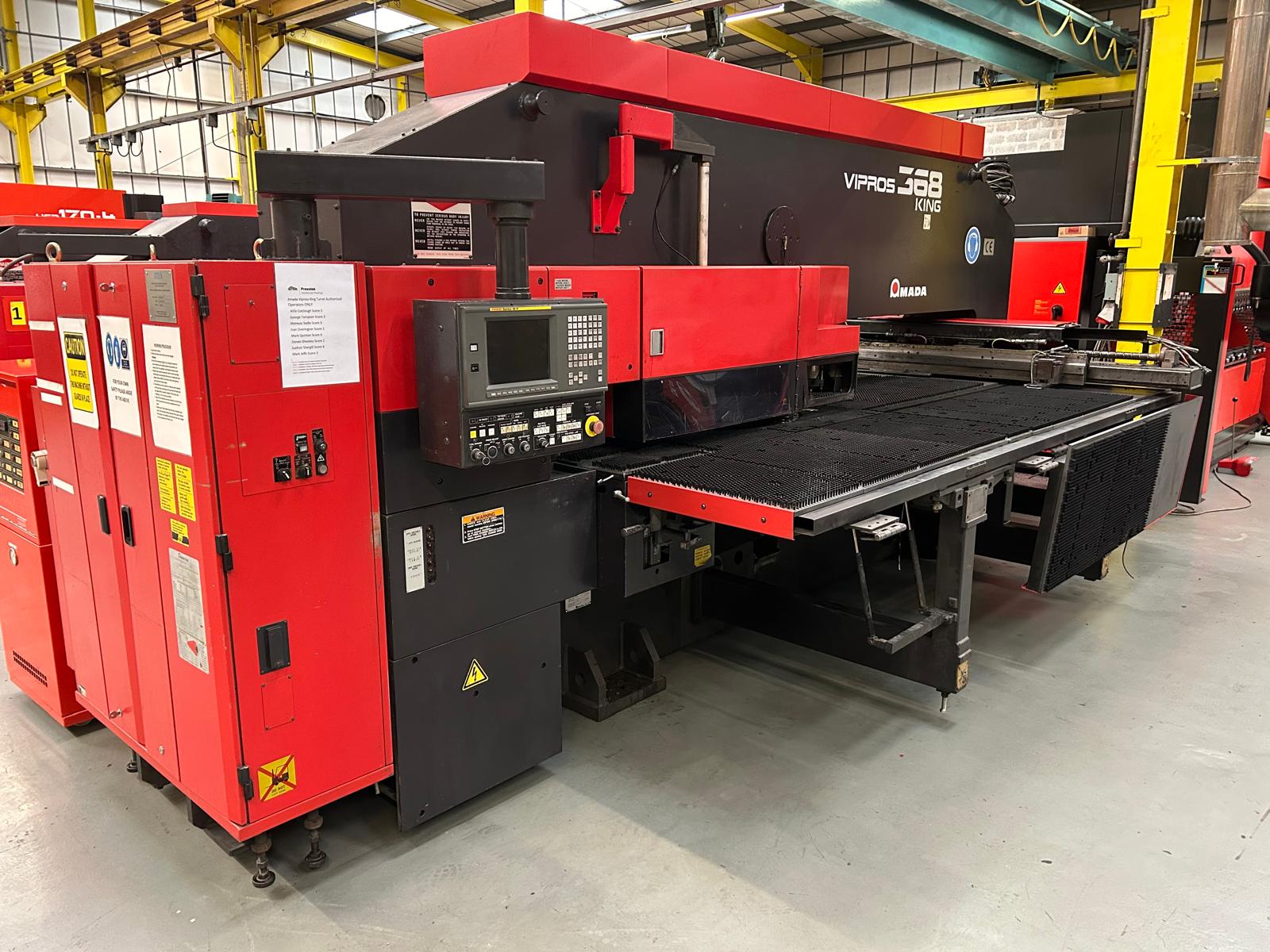

Amada Vipros stock number 01967
| Model | Amada Vipros 368 King, 58 Station Turret with 4 Auto-indexing units | |
| Year | 2002 | |
| Frame Construction | Bridge Type | |
| Press Capacity | 30 tonnes (294kN) | |
| Press Type | High Speed Hydraulic Servo Ram | |
| Axis Traverse Distance | 1525 x 2000mm | |
| Workable Maximum Sheet Size with Auto-Positioning |
1525 x 4000mm | |
| Max. Material Thickness | 2mm Stainless steel 3.2mm mild steel 4.5mm Aluminium |
|
| Max. Hole Diameter Max. Material |
114.3mm diameter | |
| Max. Material Weight | 75Kg | |
| Max. Hole Diameter | 114.3mm | |
| No. of Stations | 58 Stations: 24 x A (Max. Dia. 12.7mm) 24 x B (Max. Dia. 31.7mm) 4 x C (Max. Dia. 50.8mm) 2 x D (Max. Dia. 88.9mm) Auto Indexing: 2 x B (Max Dia 31.7mm) 2 x E (Max. Dia. 114.3mm) |
|
| Axis Speed X/Y | 113.0 m/min |
| Hits per Minutes | 2mm Pitch: 860 H.P.M./3mm Stroke 8mm Pitch: 560 H.P.M./8mm Stroke 25mm Pitch: 460 H.P.M./3mm Stroke |
| Turret Speed Bi-Directional |
30 RPM |
| Punching Accuracy | / – 0.1mm (incl. 1 reposition) |
| Ram Stroke Length | 40mm |
| Tool Lubrication | Air Blow System |
| Axis Drives | AC Servo Motor |
| Electric Power Required |
28Kva 400V /- 10% 50Hz |
| Air Pressure Required |
5.0 Kgf/cm² |
| Air Flow | 250 L/min |
| Machine Length | 5025mm |
| Machine Width | 4120mm |
| Machine Height | 2630mm |
| Machine Weight | 18000Kgs |
| Standard Equipment | Brush Table Safety Lightguards |

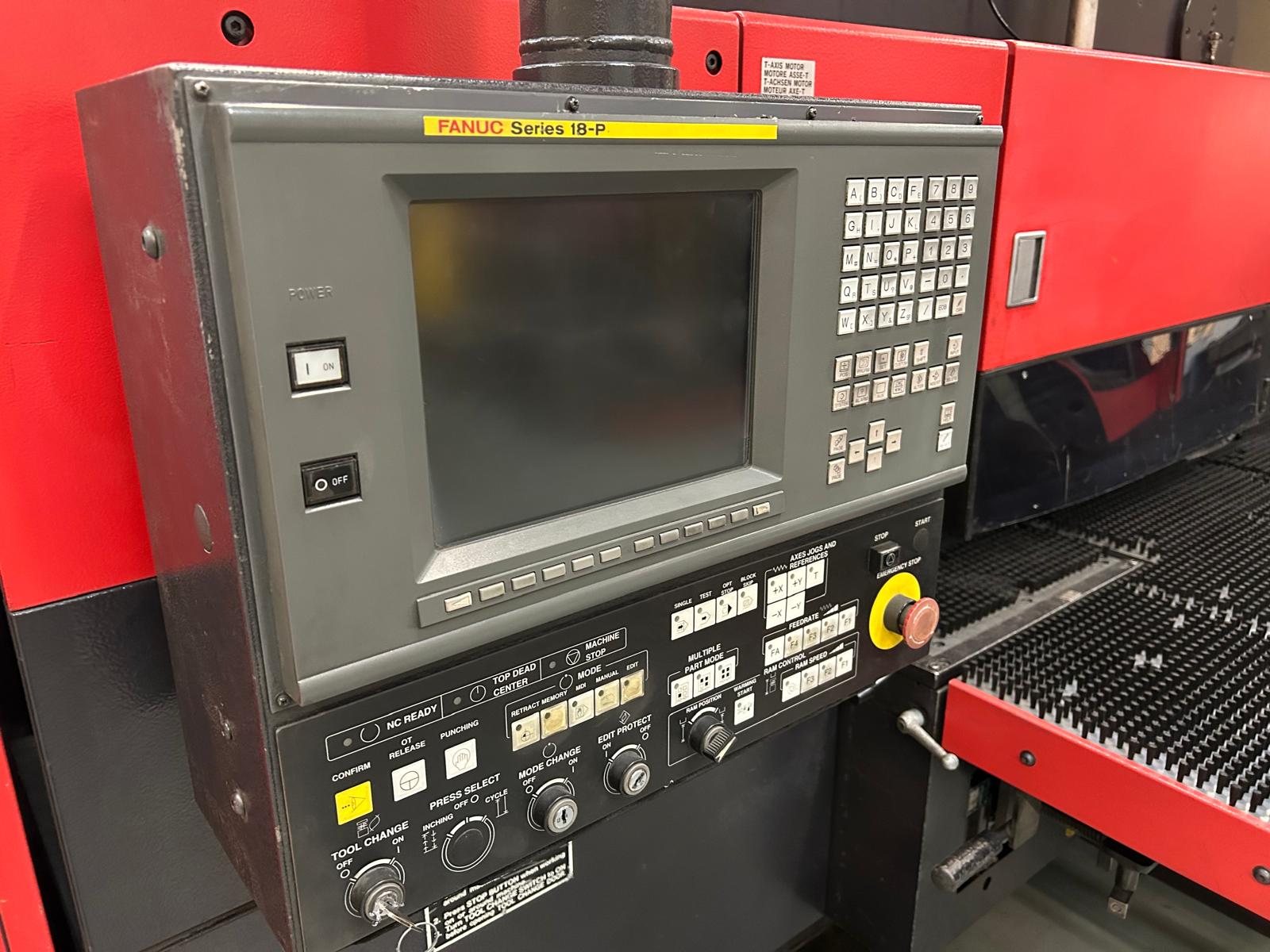

| Model Of NC: Display: Data Interface: |
18 P Control 10.4″ LCD Display Monitor RS232C |
STOCK NO:
YEAR:
2002
