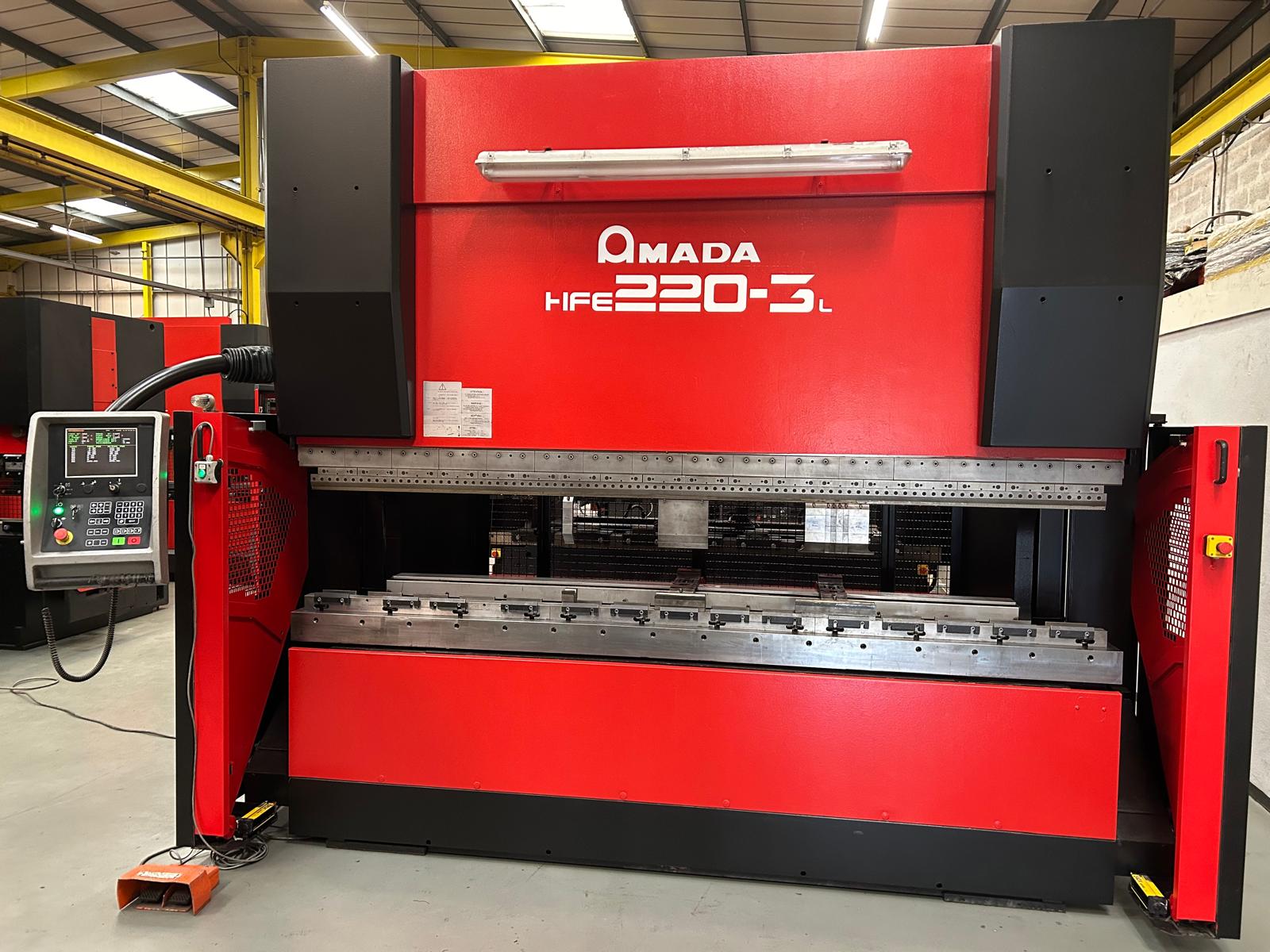

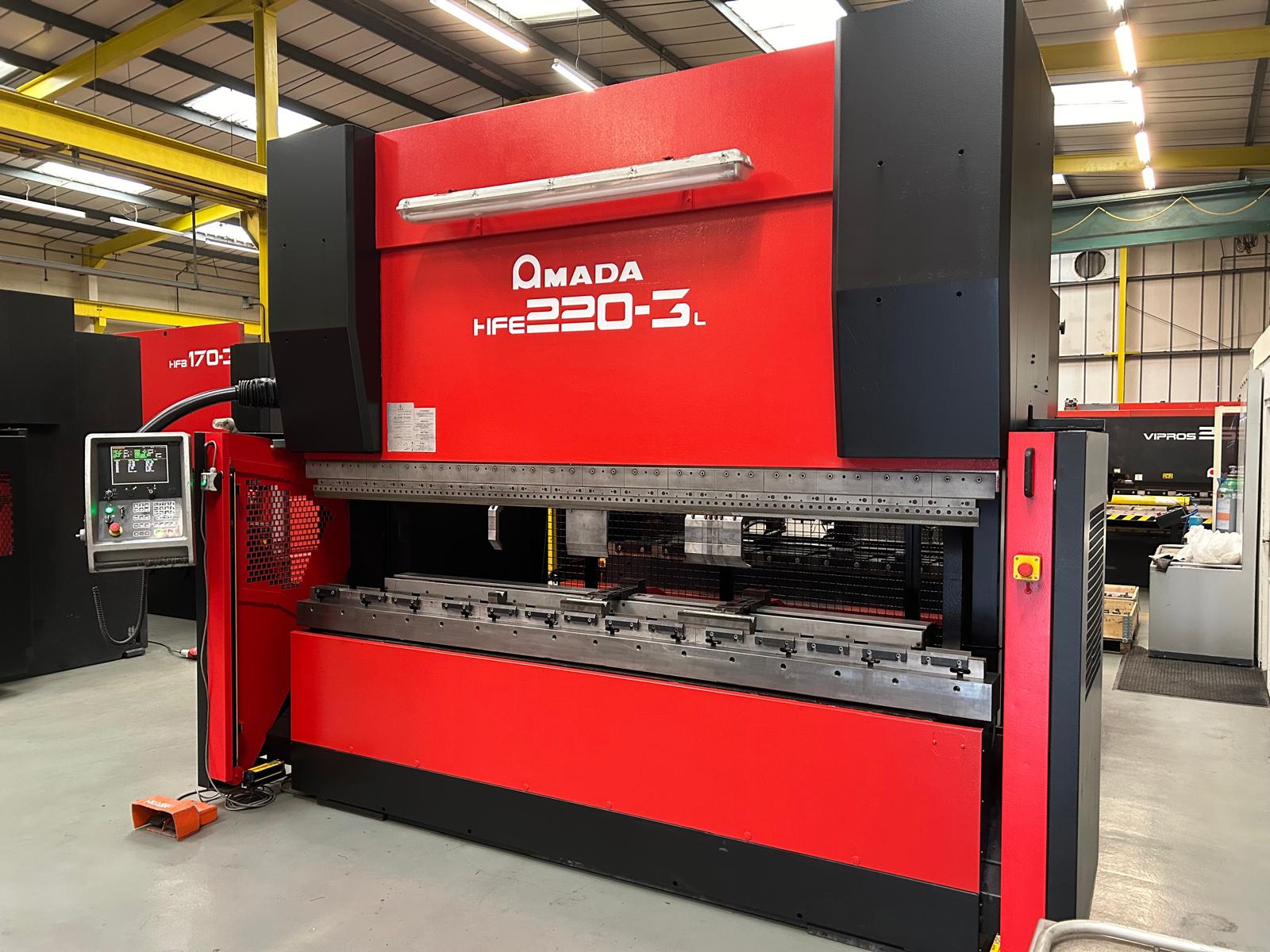

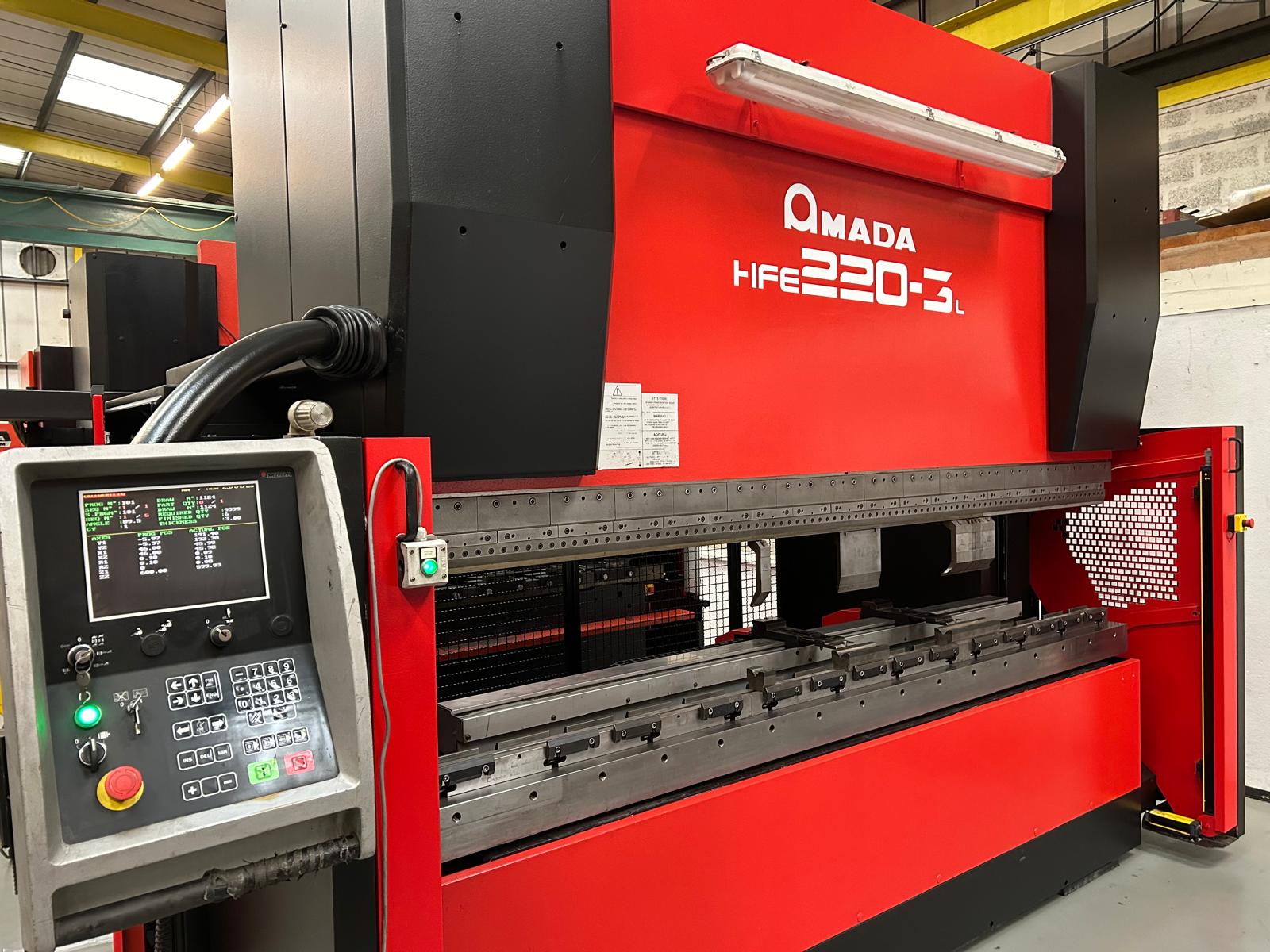

AMADA PROMECAM HFE 220-3000L LONG STROKE
- Machine type:
- Press brake
- Manufacturer:
- AMADA PROMECAM
- Model:
- HFE 220-3000L LONG STROKE
- Year of construction:
- 2000
- Condition:
- excellent (used)
Type of machine HFE220-3L

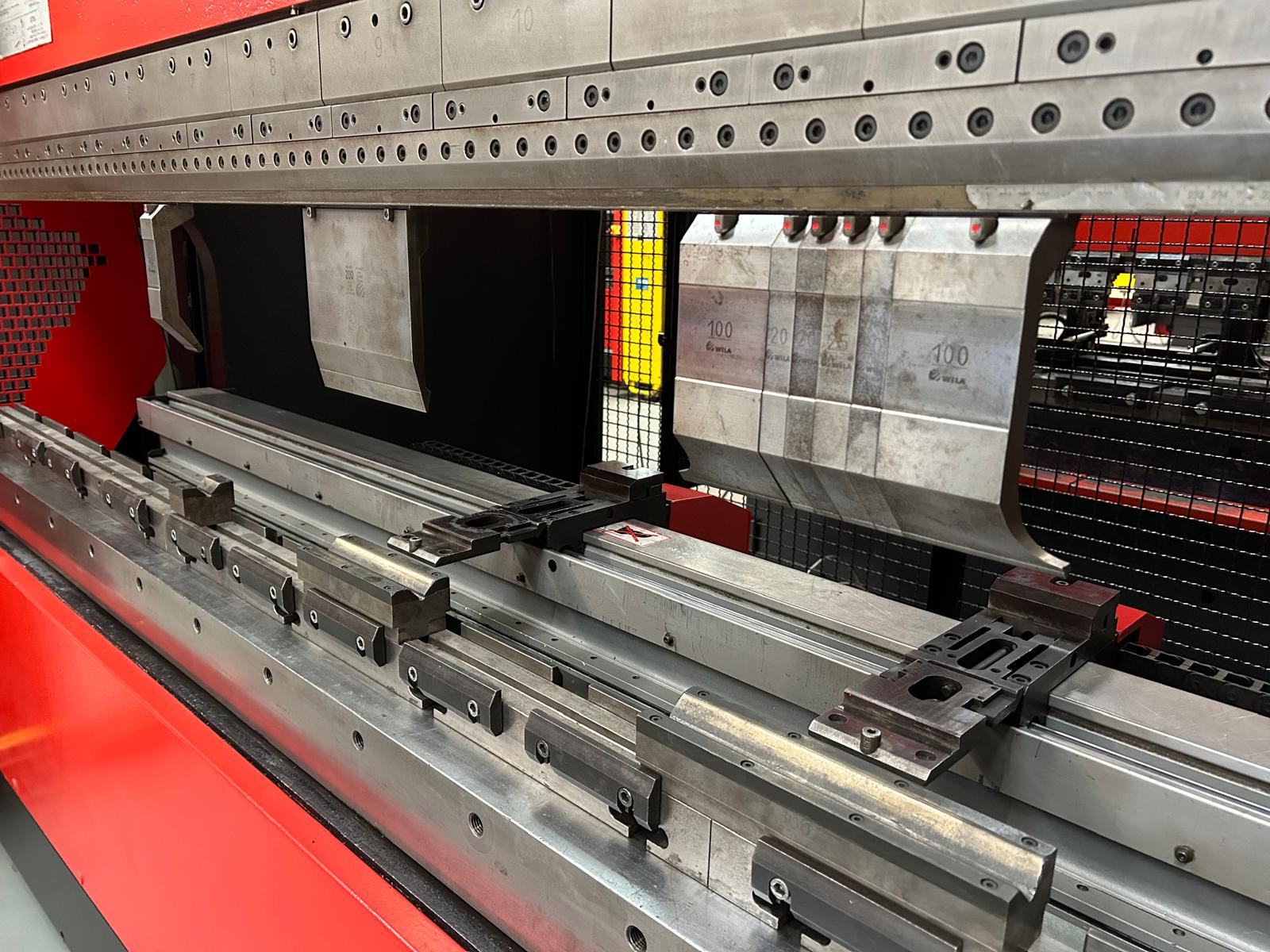

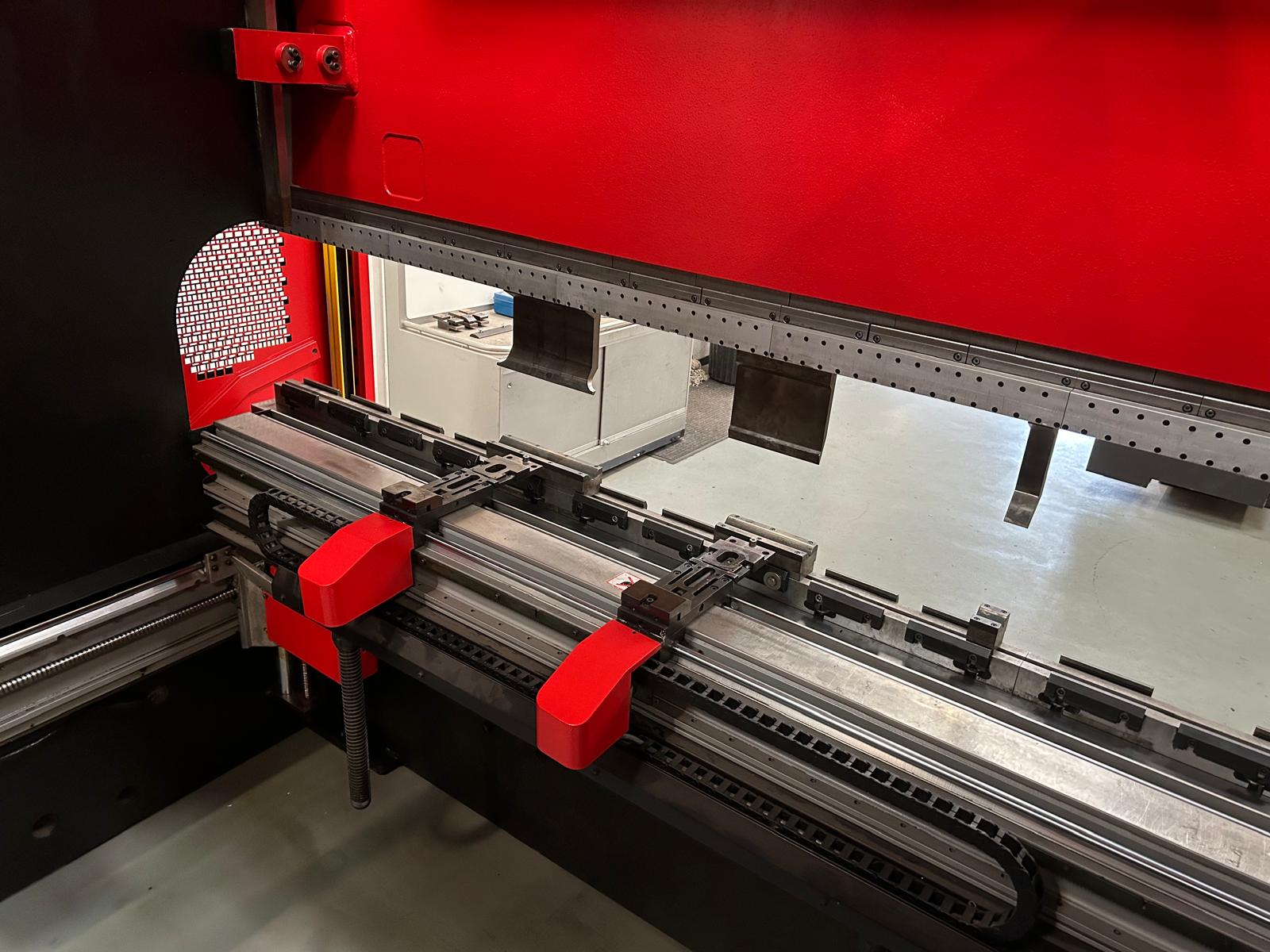

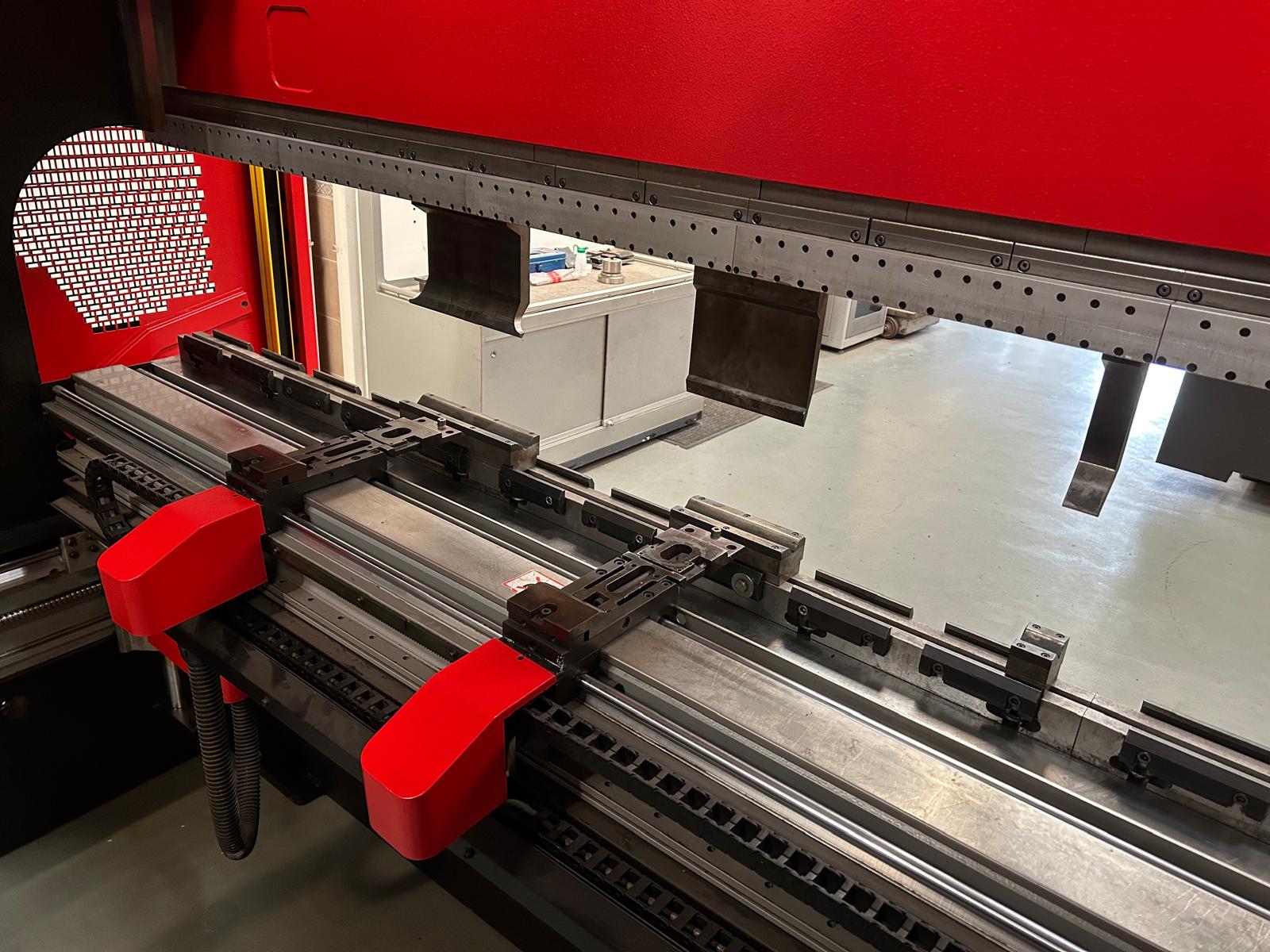

WILA TOOLING SYSTEM WITH FUL L LENGTH HYDRAULIC CLAMPING

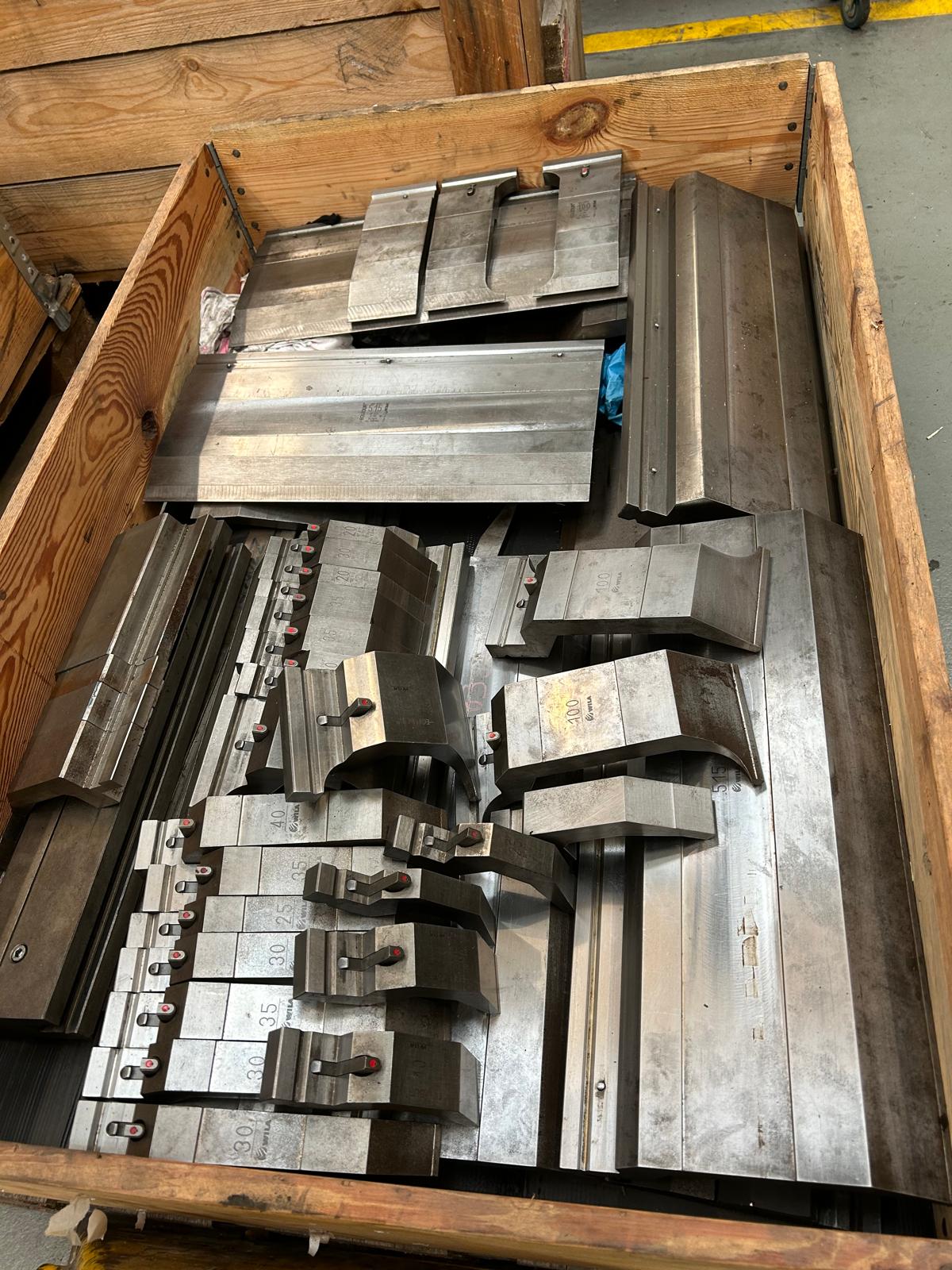

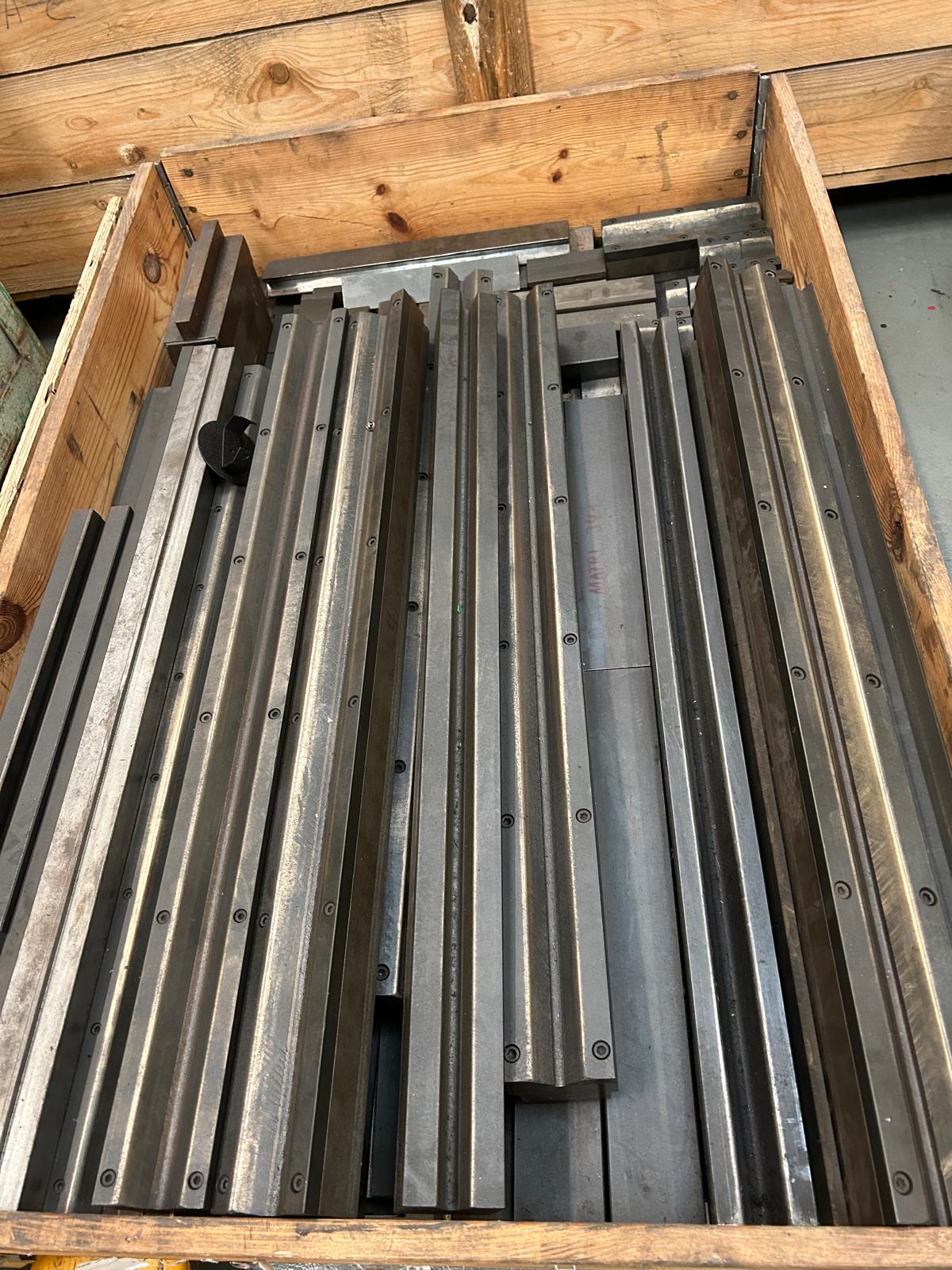

LARGE AMOUNT OF WILA TOOLING
Maximum press force 2200
Minimum usable press force 260
Beam length 3220
Distance between frames 2700
Throat depth 420
Stroke length 350
Open height 620
Minimal increment 0.01
Positioning accuracy of the beam 0.01
Beam width 180
Table height 960
Approach speed without protection 10
Approach speed with protection 100
Maximum bending speed 10
Return speed 100
Motor power 18.5
Mains rating 20
Mains voltage 400
Mains frequency 50
Hydraulic oil capacity 295
Maximum hydraulic pressure 300
Length overall +/- 10 mm 4360
Depth overall +/- 10 mm 2660
Height overall +/- 10 mm 3200
Weight approximate 15350
STOCK NO:
YEAR:
2000
