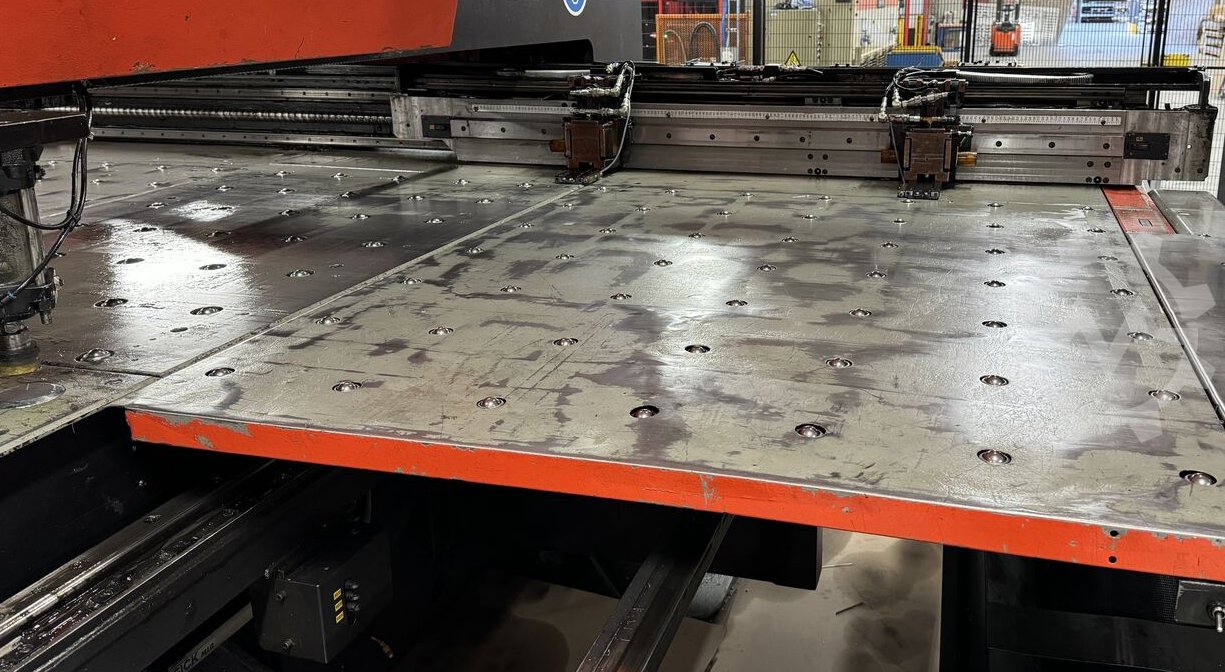

AMADA PEGA 367 45 STATION 4 AUTO-INDEXING UNIT CNC PUNCH PRESS

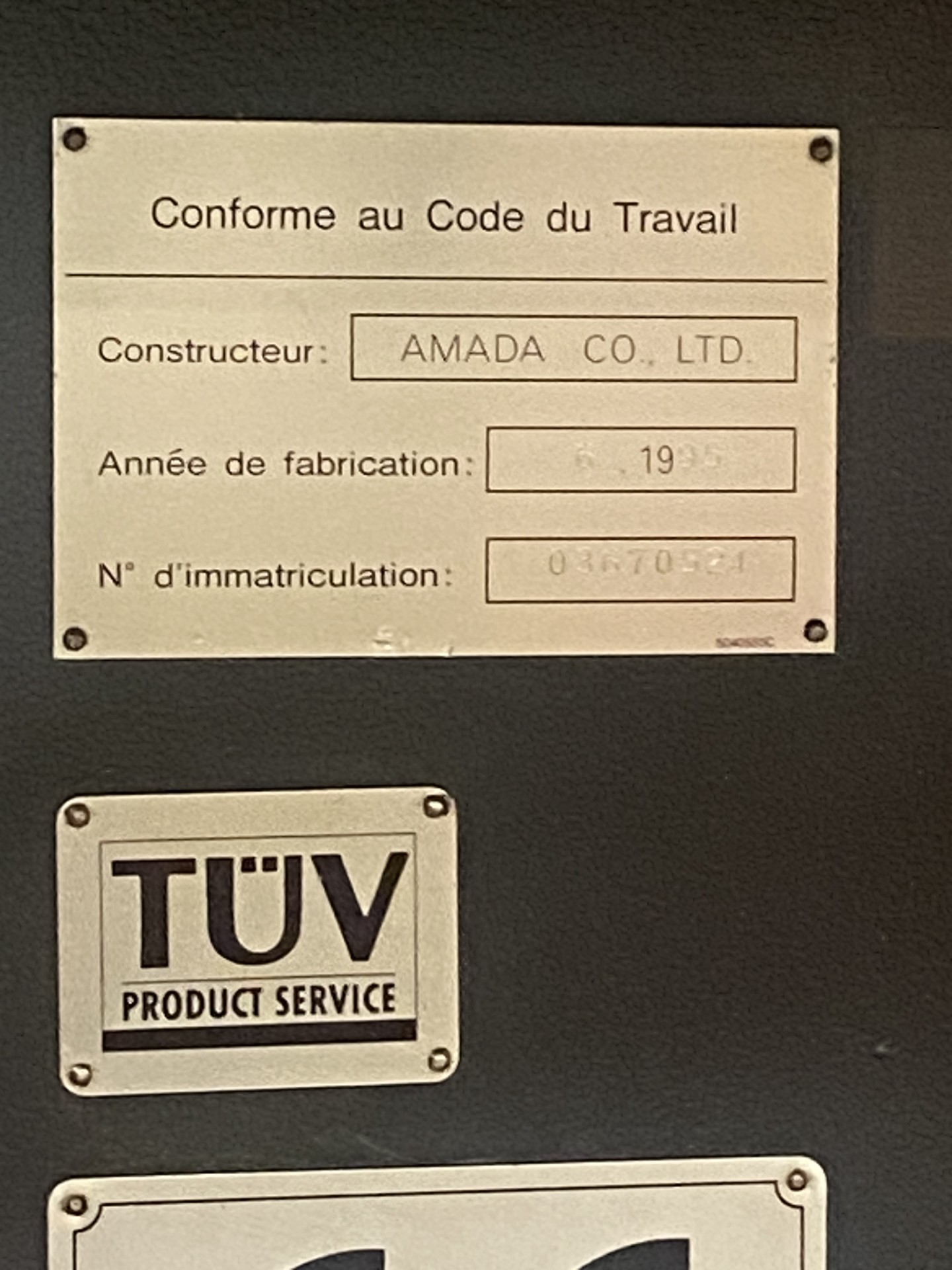

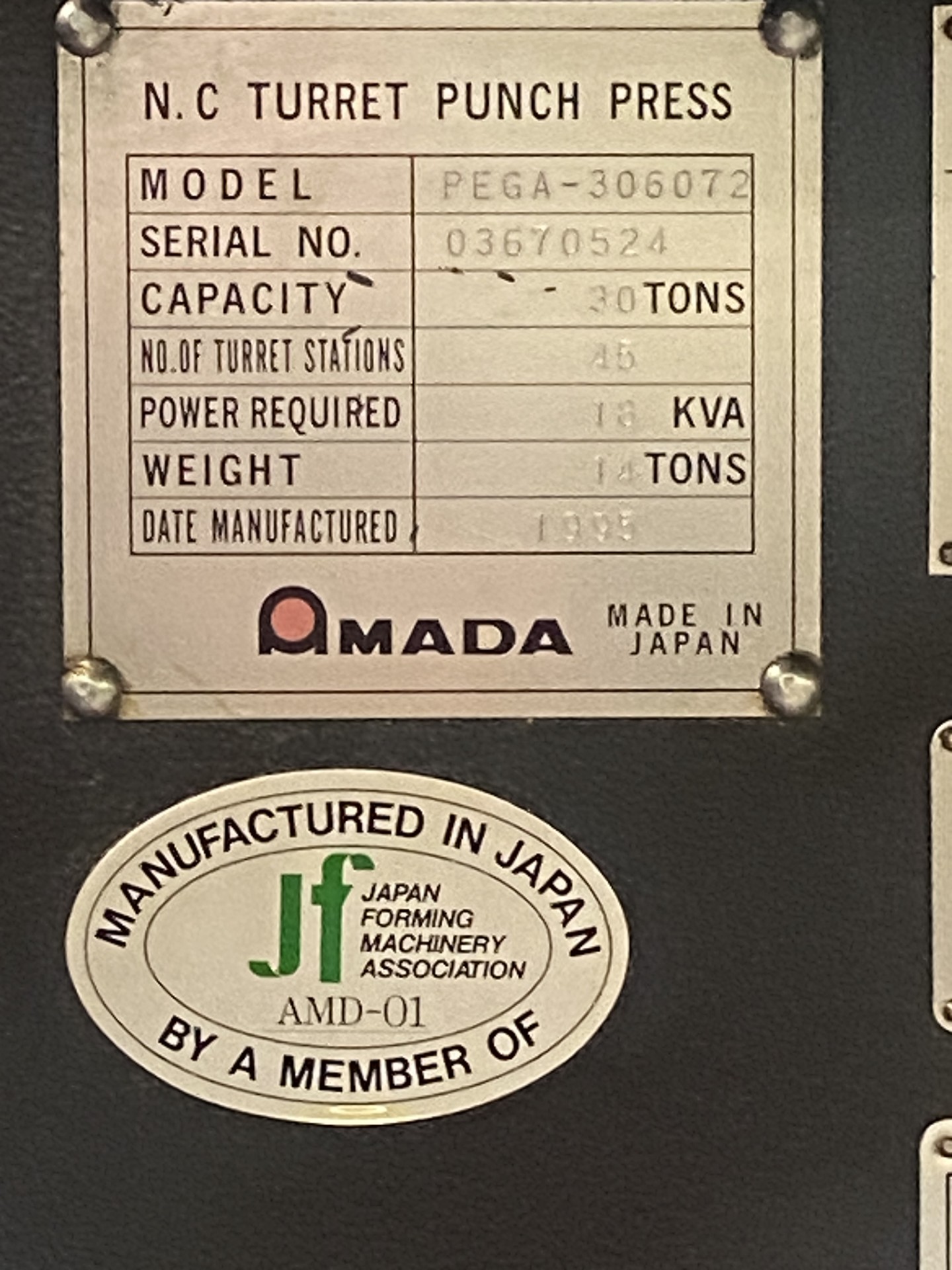

MACHINE SPECIFICATION
MODEL PEGA 30-60-72
FRAME CONSTRUCTION BRIDGE TYPE
PRESS CAPACITY 30 TONS
AXIS TRAVERSE DISTANCE 1550 mm x 1830 mm
MAX. SHEET SIZE (WITH ONE REPOSITION) 1550 mm x 3660 mm
MAX. MATERIAL THICKNESS 6.35 mm M.S.
MIN. MATERIAL THICKNESS 0.8 mm M.S.
MAX. MATERIAL WEIGHT 100KG.
MAX .HOLE DIA. 114.3 mm

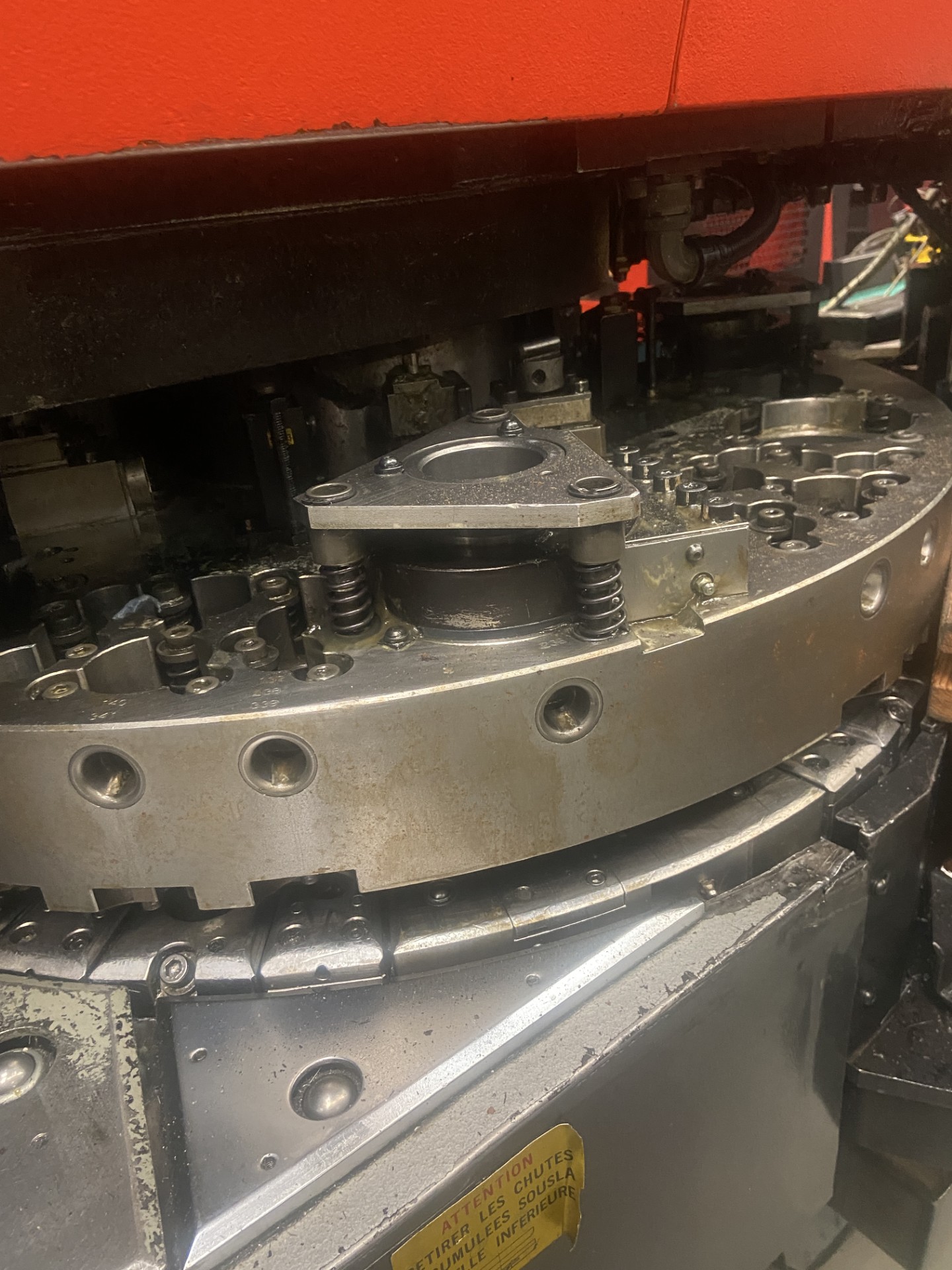

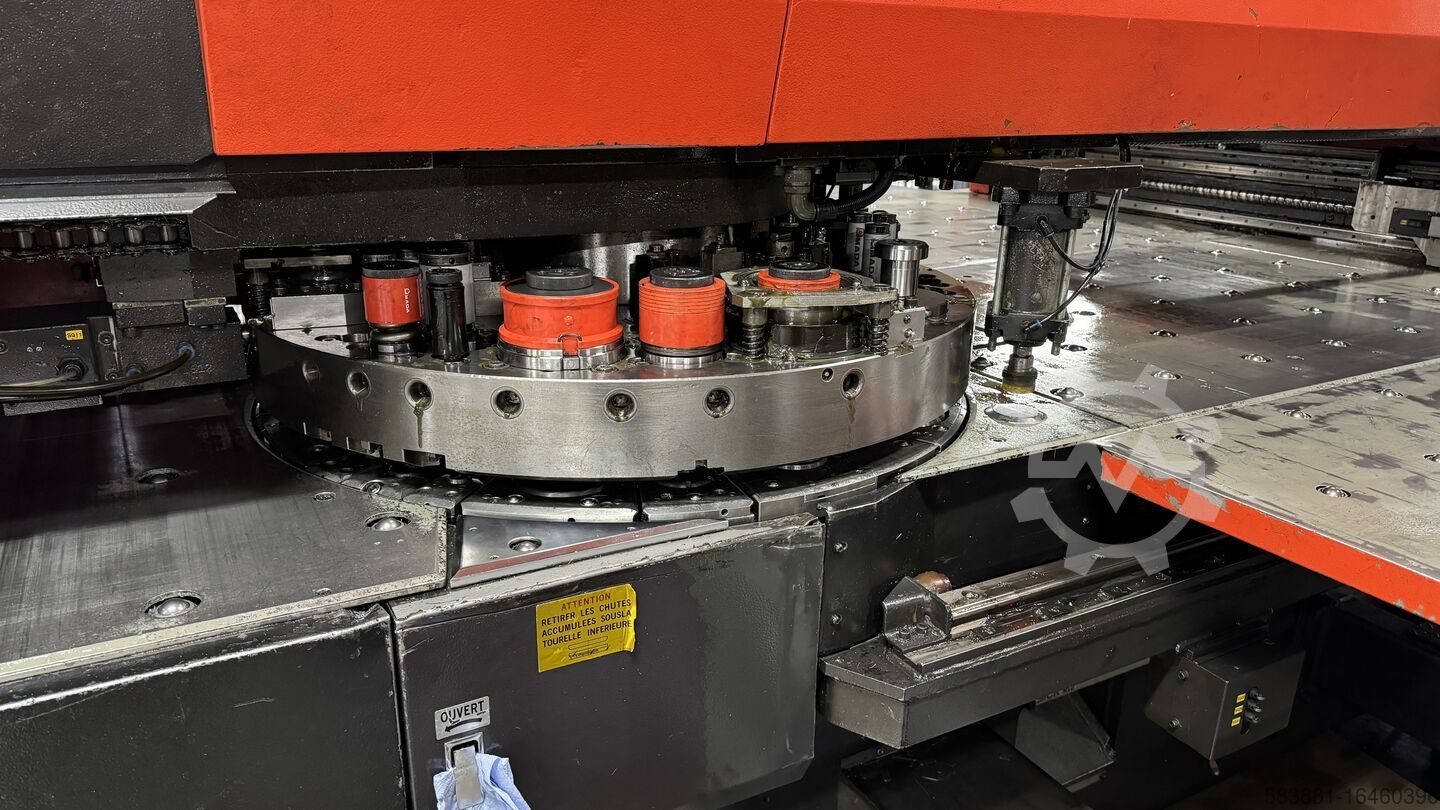

NUMBER OF STATIONS 45 STATIONS
24 X 12.7mm 12 x 31.7mm 2 x 50.8mm 1 x 88.9mm 2 x 114.3mm
AUTO-INDEX STATIONS 2 x 31.7mm 2 x 50.8mm
WORK CHUTE 200 mm x 200 mm
AXIS SPEED 50 M/MIN.
STROKES PER MIN 350
HITS PER/MIN (ONE INCH INTERVALS) 200
TURRET SPEED BI-DIRECTIONAL 30 R.P.M.
POSITIONAL ACCURACY +/- 0.10mm
RAM STROKE LENGTH 32 mm
AXIS DRIVE & TURRET DRIVE AC SERVO-MOTOR
PRESS MOTOR 5.5 KW
POWER REQ. 17 K.V.A. 400V +/-10% 50 HZ
AIR PRESSURE REQ. 5.7 kgf/cm/2
AIR FLOW 80 LITRE PER/MIN
CLUTCH/BRAKE HYDRAULIC COMBINATION
CRANK SHAFT ECCENTRIC
MACHINE LENGTH 5331 mm
MACHINE WIDTH 3770 mm
MACHINE HEIGHT 22375 mm
MACHINE WEIGHT 14000 kg

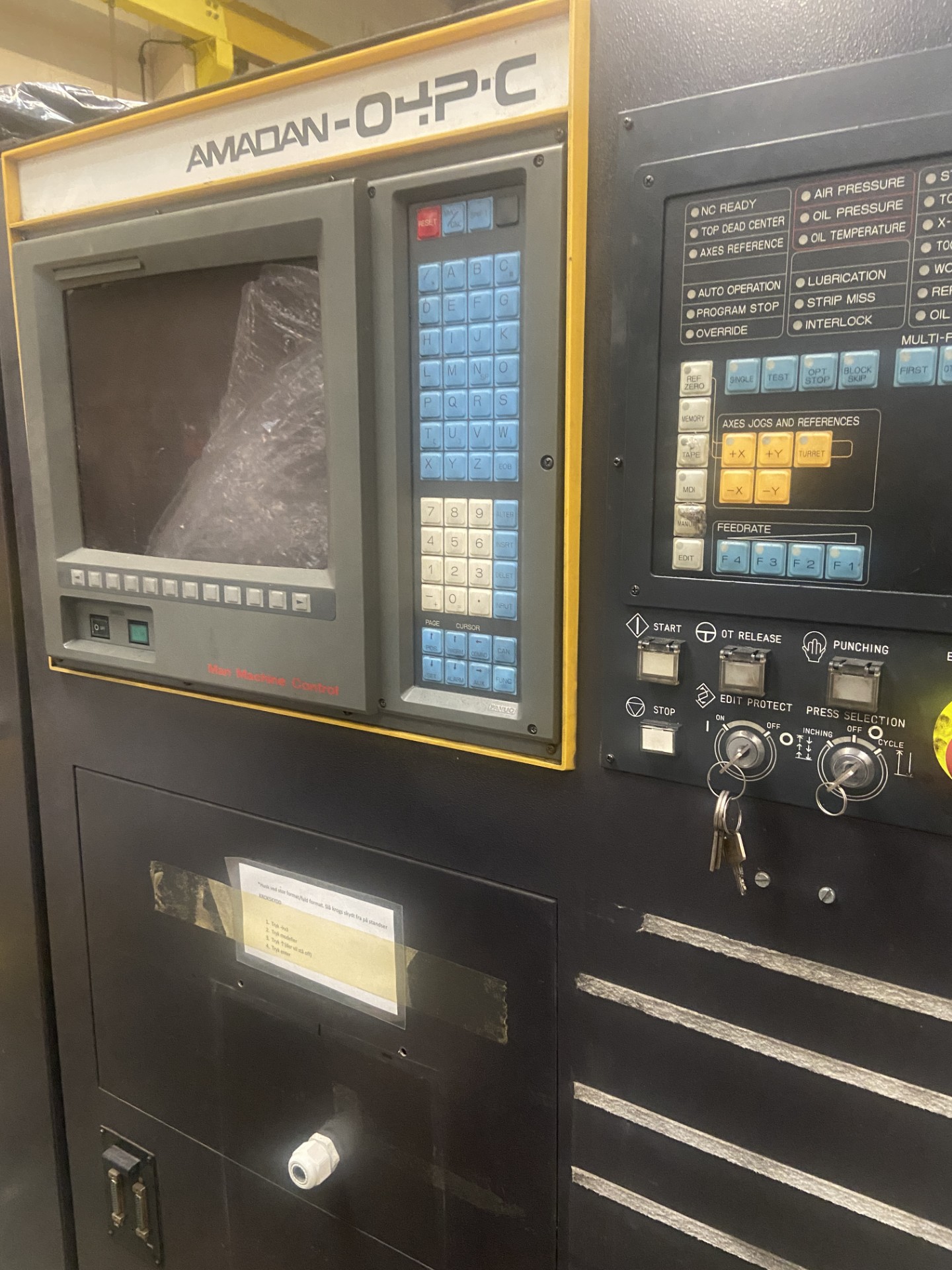

04P-C SPECIFICATION
MEMORY CAPACITY 60M OF TAPE STORAGE
MA NO OF PROGRAMS 95
CRT DISPLAY 15 LINES 32 CHARACTERS
MACHINE OPERATION MEMORY OR TAPE
PUNCH INTERFACE RS 232 C
