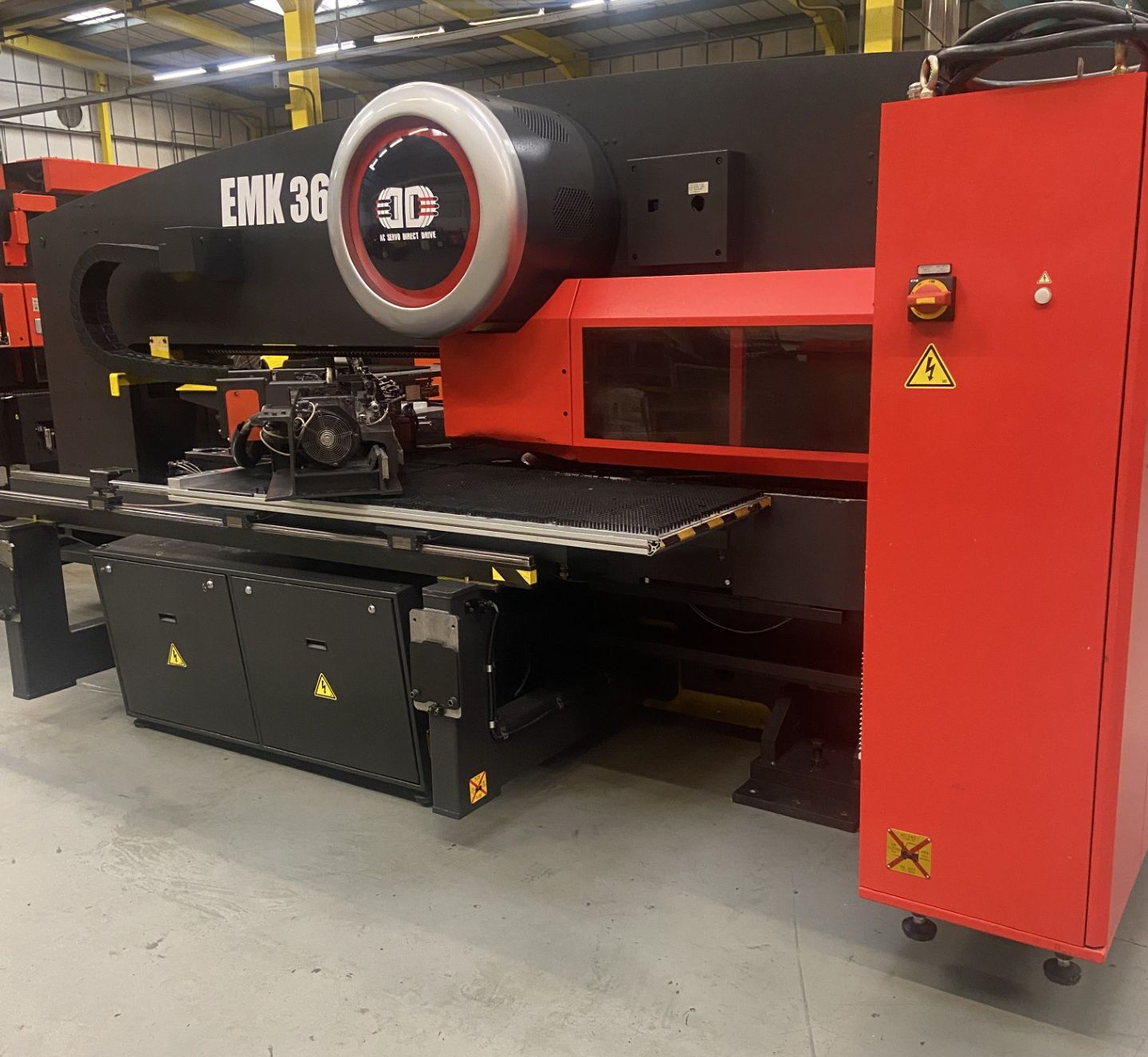

Amada EM3610NT electric punch

Title

Amada EM3610NT electric punch,

Description

58 Station Turret with 4 Auto indexing units

Stock No.

stock number 02004

Available From

stock

Year of manufacture

2012

Country of Manufacture

Japan

Construction Bridge Type

 30 tonnes ( 300kn)

Drive Type

High speed AC servo direct twin drive

Size

1525x 2500mm

Max Sheet Size

1525 x 5000mm max sheet size with auto-repositioning

max material thickness

4.5mm mild steel,

Max sheet weight

160Kg

Max hole size

114.3. mm

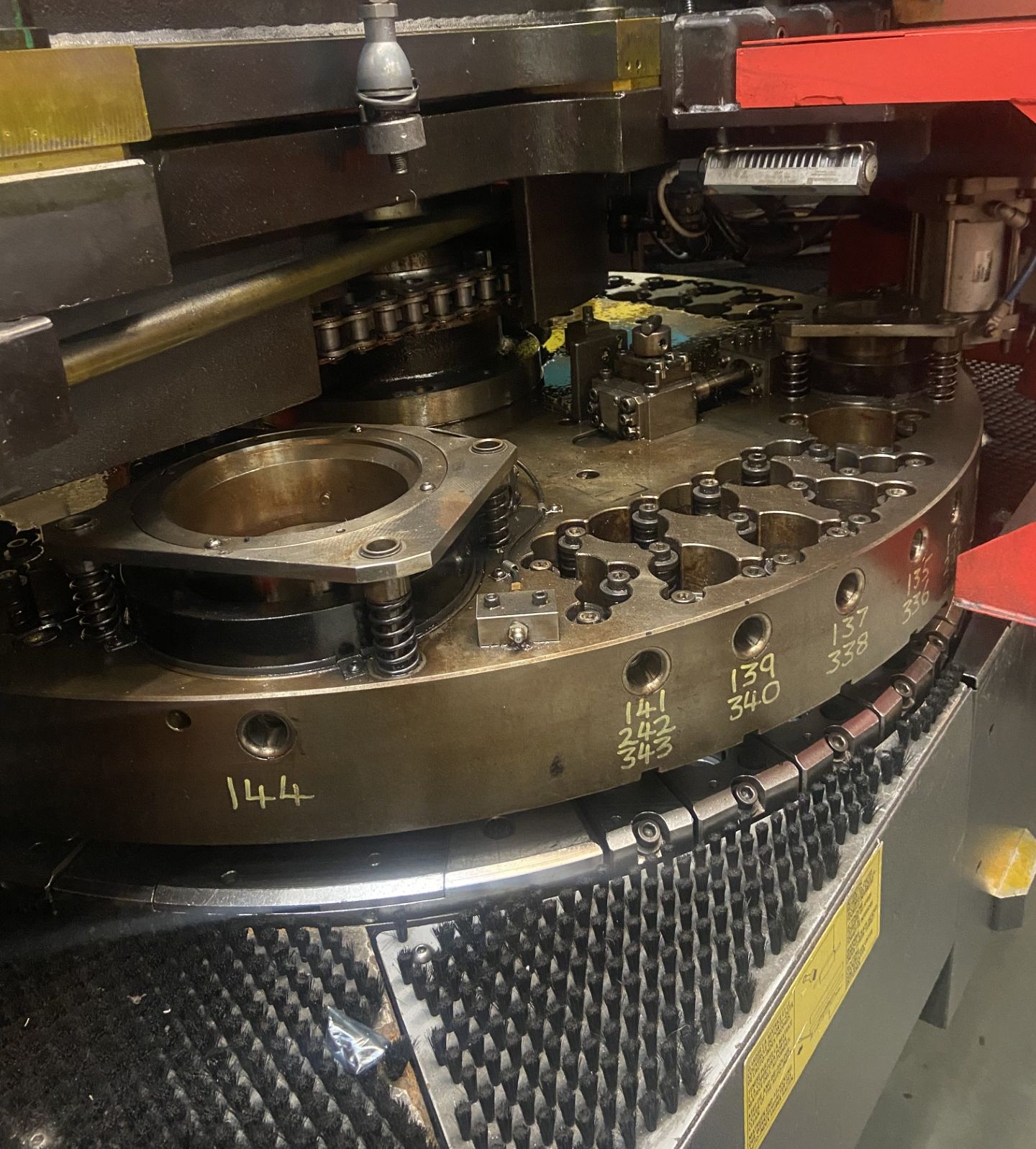

58 Stations Turret

36 x A (Max. Dia. 12.7mm)
12 x B (Max. Dia. 31.7mm)
4 x C (Max. Dia. 50.8mm)
2 x D (Max. Dia. 88.9mm)
Auto Indexing Stations
2 x B (Max Dia 31.7mm)
2 x E (Max. Dia. 114.3mm)

Axis Speed

Combined x/y Axis speed128 m/min

Turret Speed

Bi-Directional 330 RPM

Punching Accuracy / – 0.1mm

Positioning Repeatability / – 0.07mm

Ram Stroke Length

37mm

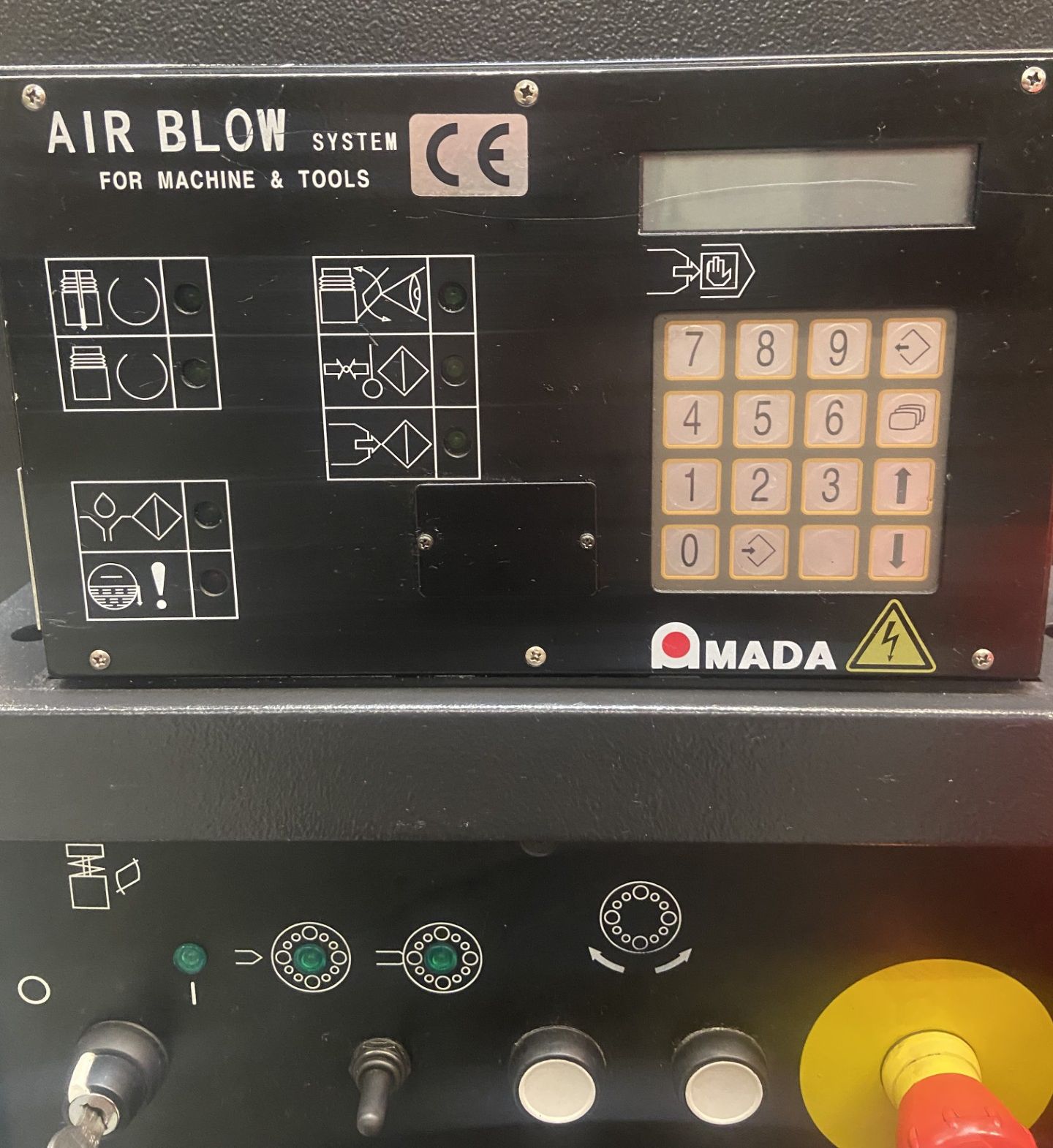

Tool Lubrication Air Blow System

Axis Drives AC Servo Motor

Electric Power

Required 22Kva 400V /- 10% 50Hz

Air Pressure

Required 5.0 Kgf/cm²

Air Flow

Air Flow 250 L/min

Machine Length

5423mm

Machine Width

5120mm

Machine Height

2318mm

Machine Weight

24.5 kgs tons

Standard Equipment Safety Light guards

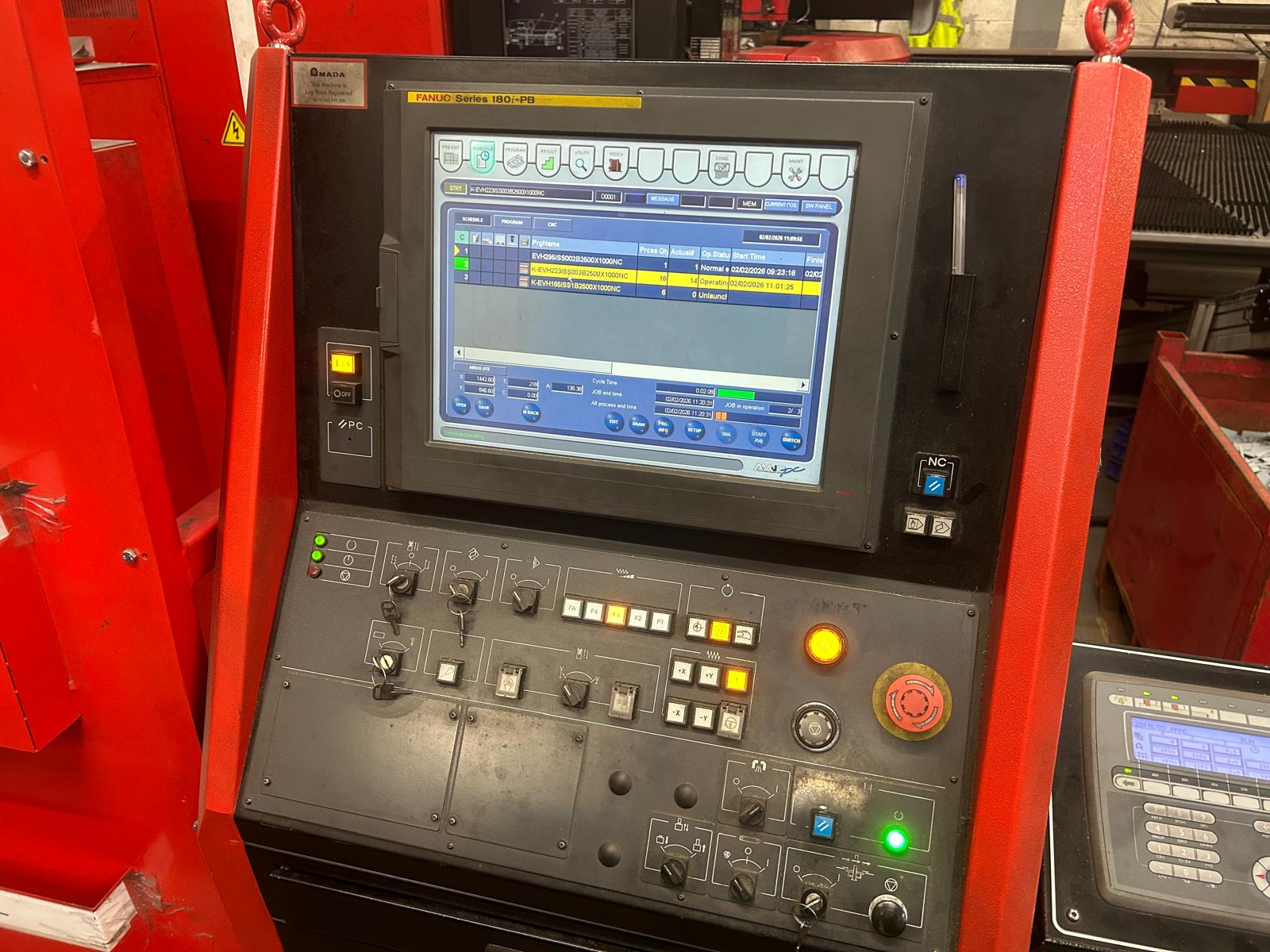

Model Of NC

Data Interface: Amada AMNC-F (Fanuc 180i-PB)
