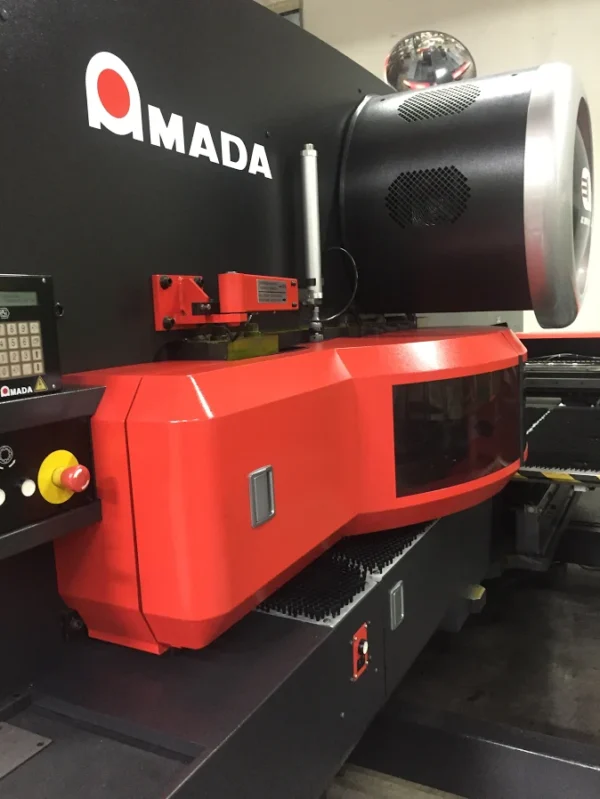

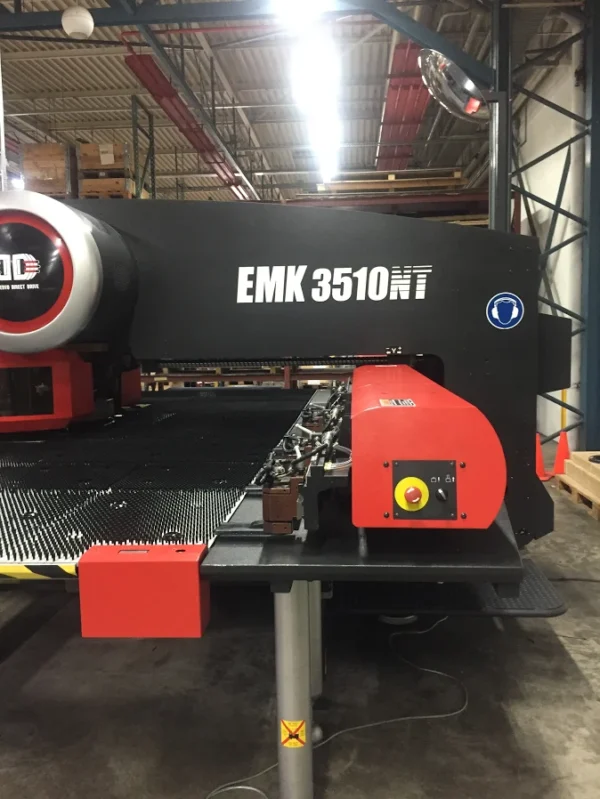

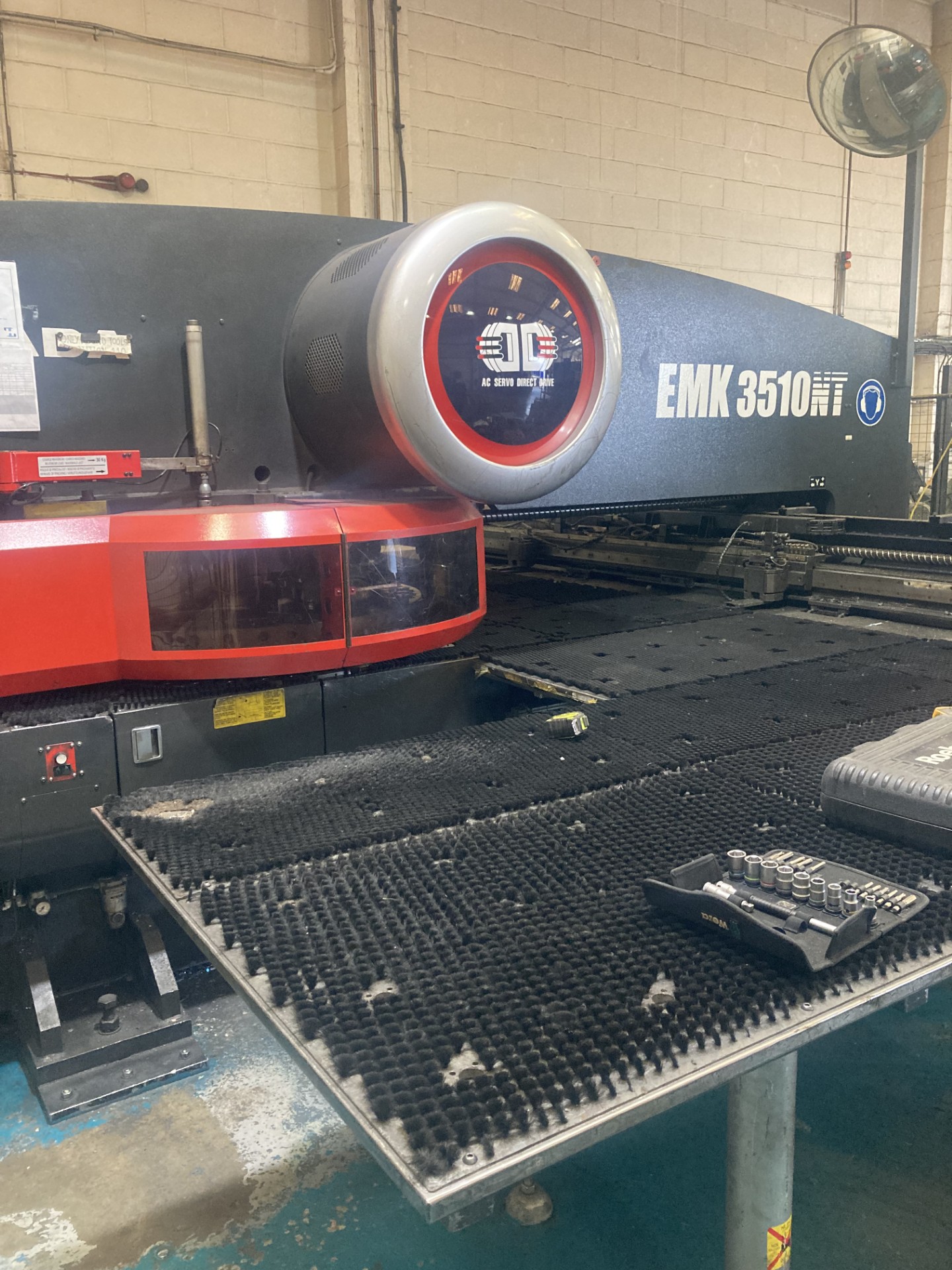

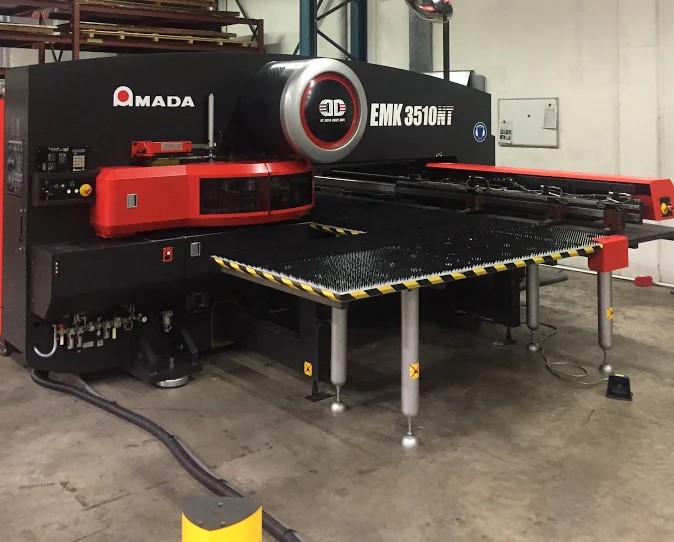

Amada EM3510NT electric punch
| Title |
Amada EM3510NT electric punch, |
| Description |
58 Station Turret with 4 Auto indexing units |
| Stock No. | stock number 01990 |
| Available From |
stock |
| Year of manufacture |
2008 |
| Country of Manufacture | Japan |
| Construction Bridge Type | 20 tonnes (196kN) |
| Drive Type | High speed AC servo direct twin drive |
| Size | 1270 x 2500mm |
| Max Sheet Size | 1270 x 5000mm max sheet size with auto-repositioning |
| max material thickness |
4.5mm mild steel, |
| Max sheet weight | 150Kg |
|
Max hole size |
114.3. mm |
|
58 Stations Turret
36 x A (Max. Dia. 12.7mm)
12 x B (Max. Dia. 31.7mm) 4 x C (Max. Dia. 50.8mm) 2 x D (Max. Dia. 88.9mm) Auto Indexing Stations 2 x B (Max Dia 31.7mm) 2 x E (Max. Dia. 114.3mm) |
|
|
Axis Speed |
Combined x/y Axis speed128 m/min |
| Turret Speed | Bi-Directional 330 RPM |
| Punching Accuracy / – 0.1mm | |
| Positioning Repeatability / – 0.07mm | |
| Ram Stroke Length | 37mm |
| Tool Lubrication Air Blow System | |
| Axis Drives AC Servo Motor | |
| Electric Power | Required 22Kva 400V /- 10% 50Hz |
| Air Pressure | Required 5.0 Kgf/cm² |
| Air Flow | Air Flow 250 L/min |
| Machine Length | 5526mm |
| Machine Width | 5120mm |
| Machine Height | 2318mm |
| Machine Weight | 18 tons |
| Standard Equipment Safety Light guards | |
| Model Of NC | Data Interface: Amada AMNC-F (Fanuc 180i-PB) |
STOCK NO:
YEAR:
2008
