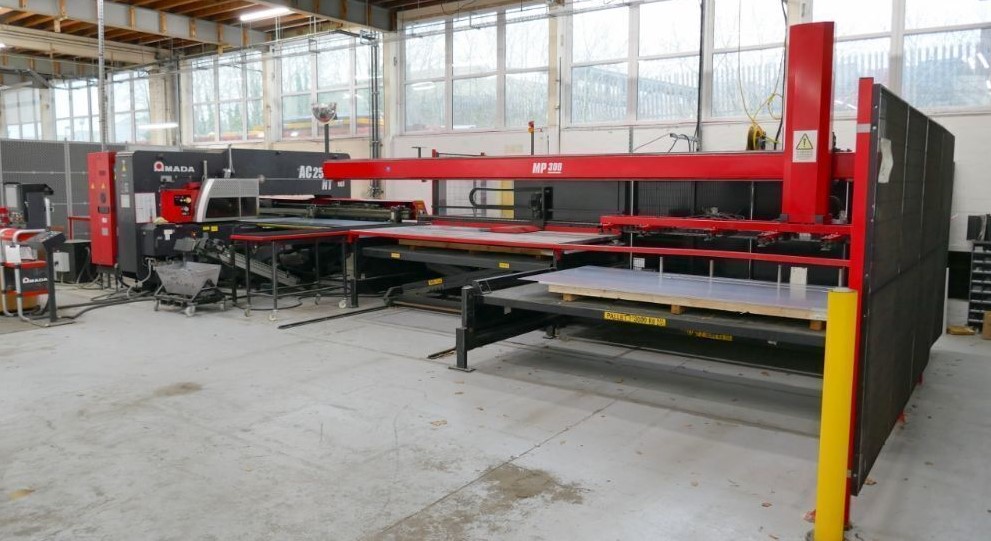

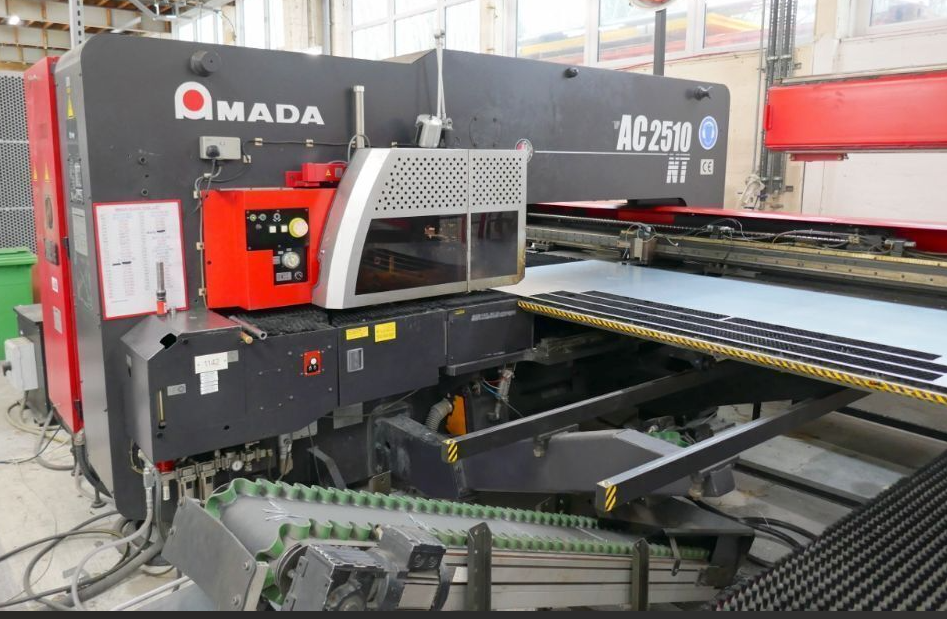

Amada AC 2510 NT CNC Turret Punch with full load -unload automation

200kN force, 51 tool stations

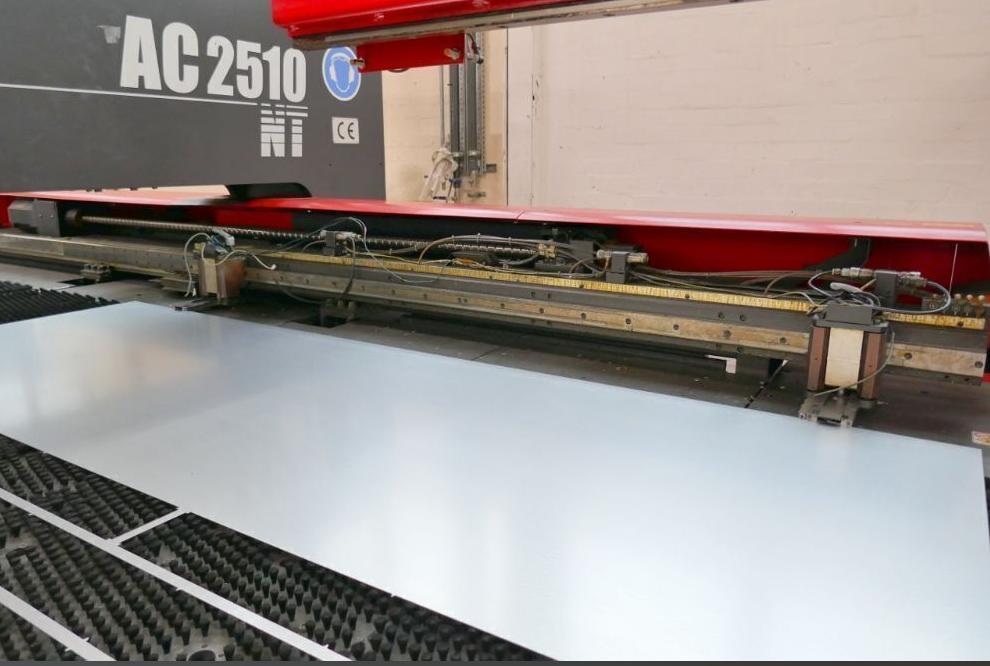

LKI MP 300M automatic sheet loader / manipulator with 3000mm x 1500mm sheet capacity.

With tooling Scrap conveyors With Sick MSLE03 safety light curtain approx. total weight 19000kg including tooling and sheet loader

Bridge Type

20 tonnes (196kN)

Press Type AC Servo Drive

Axis Traverse Distance 1270 x 2500mm

Workable Maximum Sheet Size 1270mm x 5000mm (with auto repositioning)

Fully serviced with Amada uk.

Max. Material Thickness 6.4mm mild steel

Max. Hole Diameter 88.9 mm

Max. Material Weight 150 kg

No. of Stations

24 A up to 12.7 mm

18 B up to 31.7 mm

3 C up to 50.8 mm

2 D up to 88.9 mm

3 AI up to 31.7 mm

1 AI up to 50.8 mm

Axis Speed (X, Y) 100 m/min

Hits Per Minute

Turret Speed Bi-Directional 30 R.P.M

Punching Accuracy 0.1 mm (incl 1 respostion)

Ram Stroke Length 41

Tool Lubrication

Axis Drives

Electric Power Required 19 KVA

Air Pressure Required 5.0 Kgf/cm2

Air Flow 500 l/min

Machine Length 4165 mm

Machine Width 5120 mm

Machine Height 2082 mm

Machine Weight 13000 kg

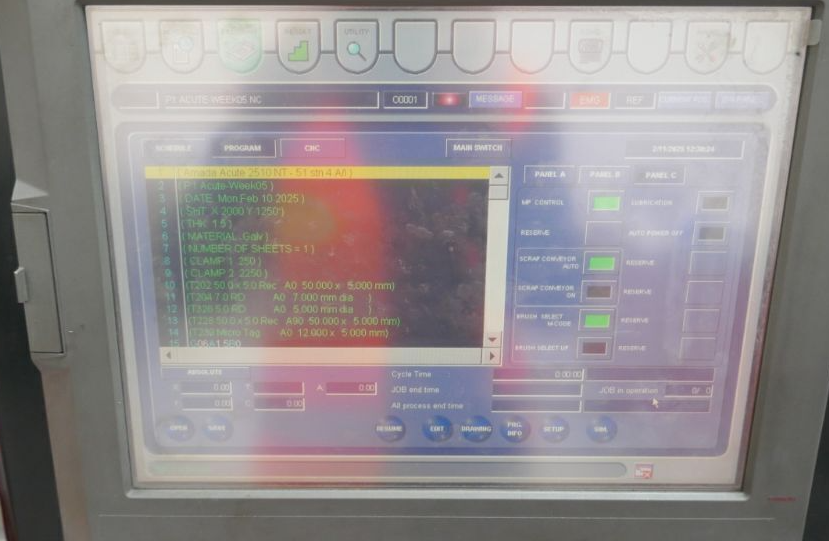

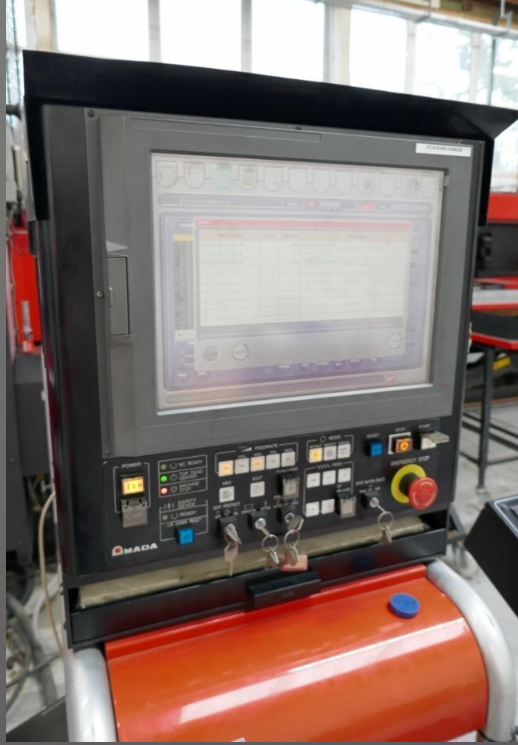

AMNC-F windows based network control

15″ Colour LCD touch screen
